Plot information criteria across an enumeration grid

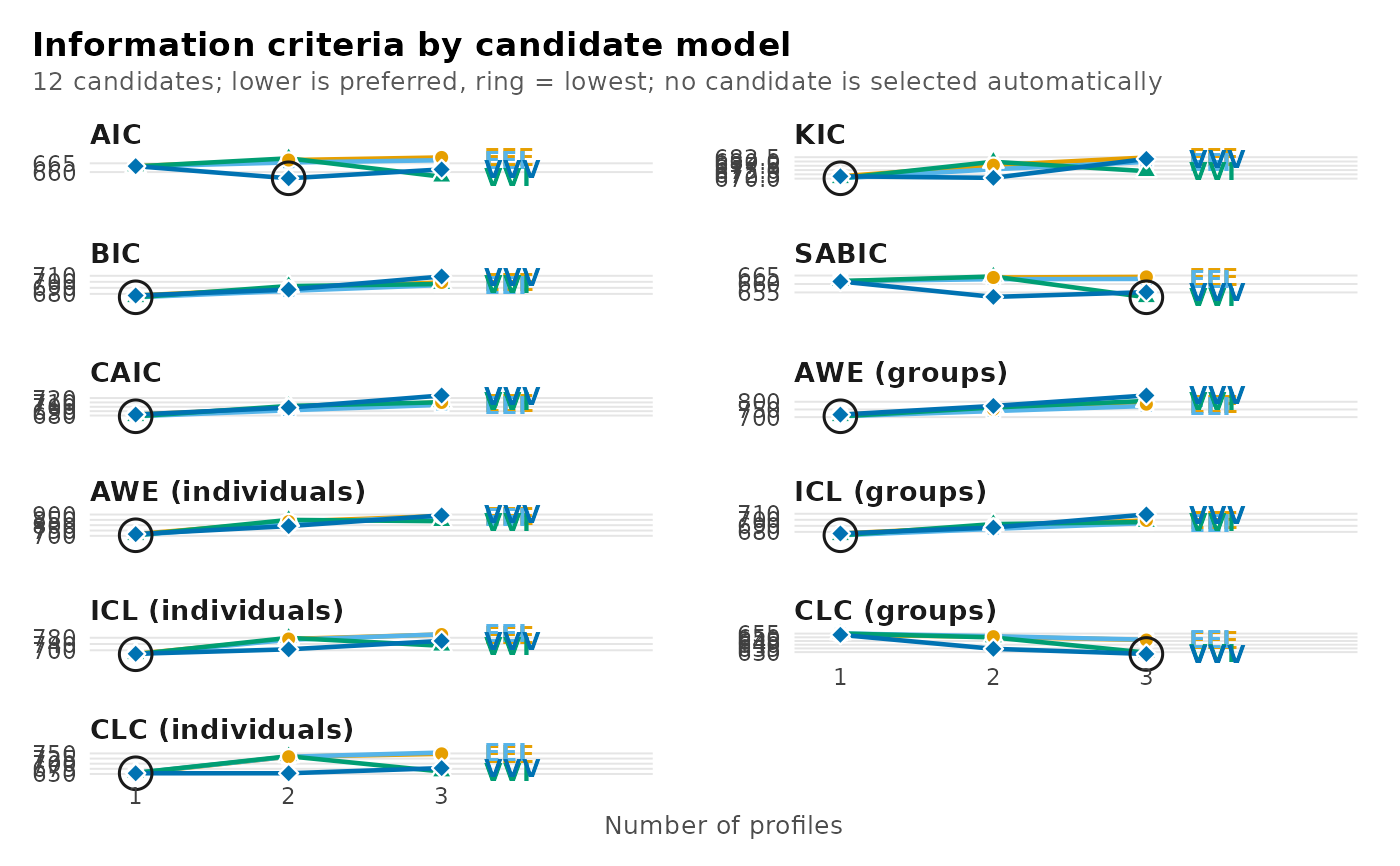

Draws information criteria against the number of profiles, one panel per criterion and one line per covariance model and number of group classes. It is the view plot(x) draws for an enumeration, as a function of its own so that its arguments are listed (and completed by an editor) without going through what =. A candidate that failed to converge is marked with a cross on its panel's floor, so a gap in a line reads as a failure and not as a missing candidate.

Usage

plot_enumeration(
  x,
  criterion = c("aic", "bic_groups", "bic_individual", "icl_individual"),
  combine = TRUE,
  labels = TRUE,
  mark_minimum = TRUE,
  main = NULL,
  subtitle = NULL
)

Arguments

x: A multilpa_enumeration result from enumerate_classes(), enumerate_lpa() or enumerate_lca().
criterion: One or more criterion columns of as.data.frame(x), such as "bic_individual" or "sabic_groups", or "all" for every information criterion in the grid. The default draws AIC, BIC under both sample-size conventions and ICL counted over individuals. A criterion identical at both levels, as in a single-level grid, is drawn once.
combine: TRUE draws several criteria as panels of one plot; FALSE returns one plot per criterion.
labels: TRUE labels each series at its right end.
mark_minimum: TRUE rings each criterion's lowest value among converged candidates. This marks an extremum; it does not select a model.
main, subtitle: Title and subtitle. NULL uses the view's own.

Value

A ggplot object, one panel per criterion; with combine = FALSE and several criteria, a latents_plots list of ggplot objects, one per criterion, named by its criterion column.

Errors

latents_unknown_criterion for a criterion that is not an information criterion of the grid; latents_nothing_to_plot when no converged candidate has a finite value.

Examples

if (requireNamespace("ggplot2", quietly = TRUE)) {
  set.seed(7)
  example_data <- data.frame(score_a = rnorm(120), score_b = rnorm(120))
  candidates <- enumerate_lpa(example_data, c("score_a", "score_b"),
                              n_profiles = 1:3, n_starts = 2)
  plot_enumeration(candidates)
  plot_enumeration(candidates, criterion = "all")
}
