Plot Each Tree in a context tree Group

Draw every member of a transitiontrees_group in turn via plot.transitiontrees. Each member's plot is printed (so the call produces one figure per group, e.g. in an R Markdown chunk), captioned with its group name; the named list of plot objects is returned invisibly for further use.

Usage

# S3 method for class 'transitiontrees_group'
plot(x, ...)

Arguments

x

A transitiontrees_group.

...

Passed to plot.transitiontrees (e.g. style).

Value

Invisibly, a named list (one entry per group, in group order) of the per-member plot objects.

Examples

# \donttest{
m   <- matrix(sample(c("A","B","C"), 200, replace = TRUE), 40, 5)
grp <- context_tree(m, group = rep(c("x","y"), each = 20),
                    max_depth = 2L)

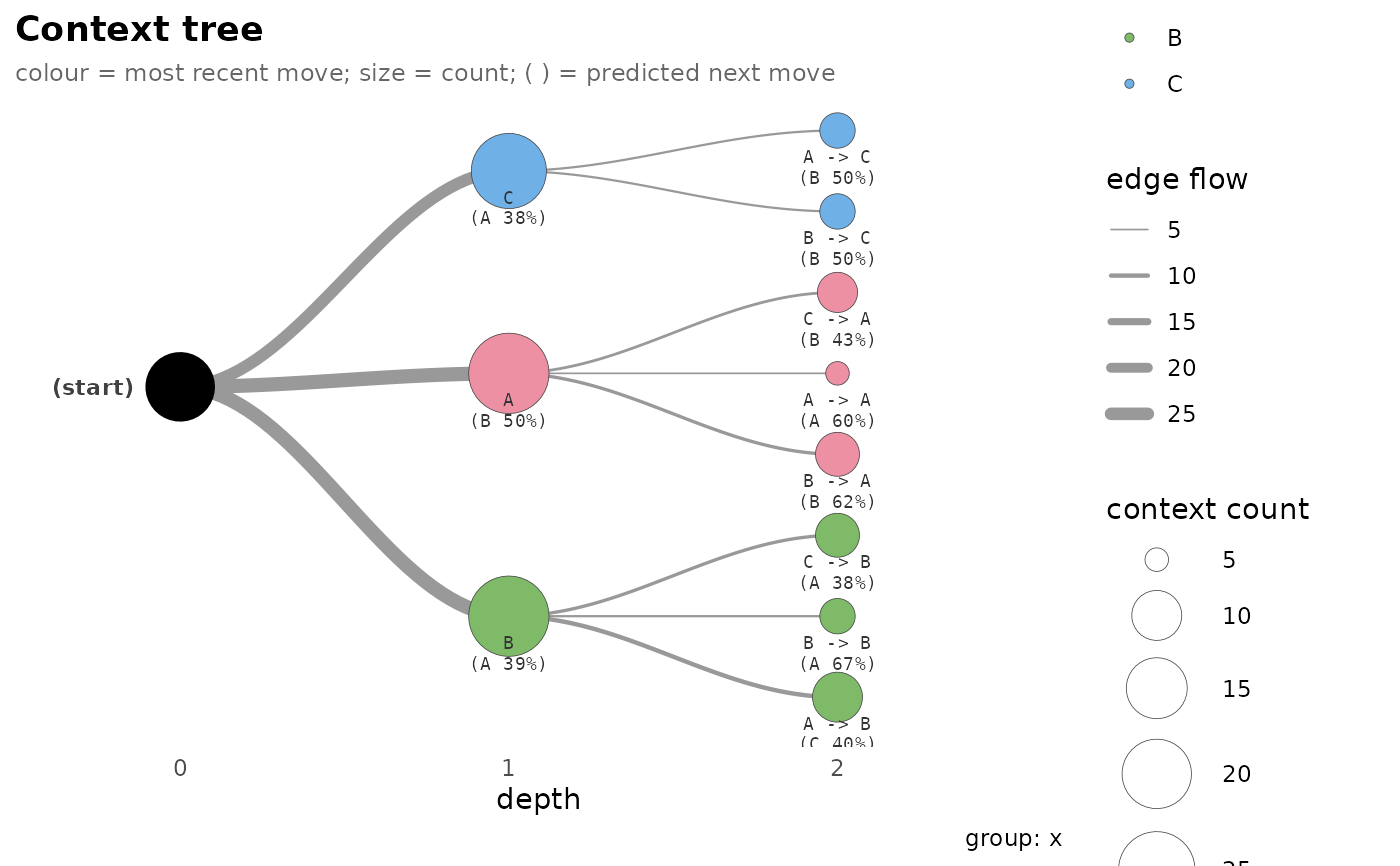

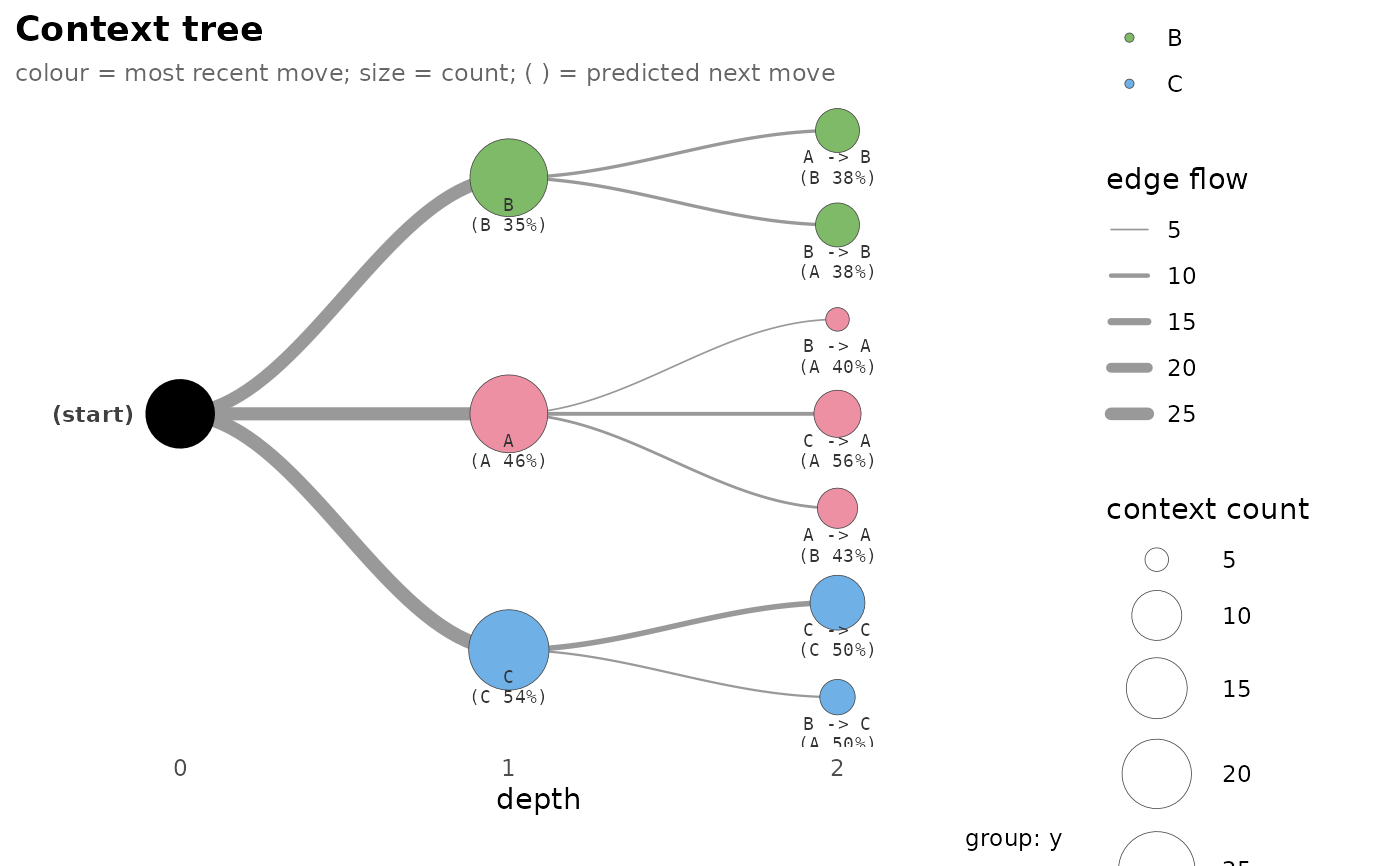

plot(grp)                         # one tree per group


# }
