Renders a fitted transitiontrees in one of four styles:

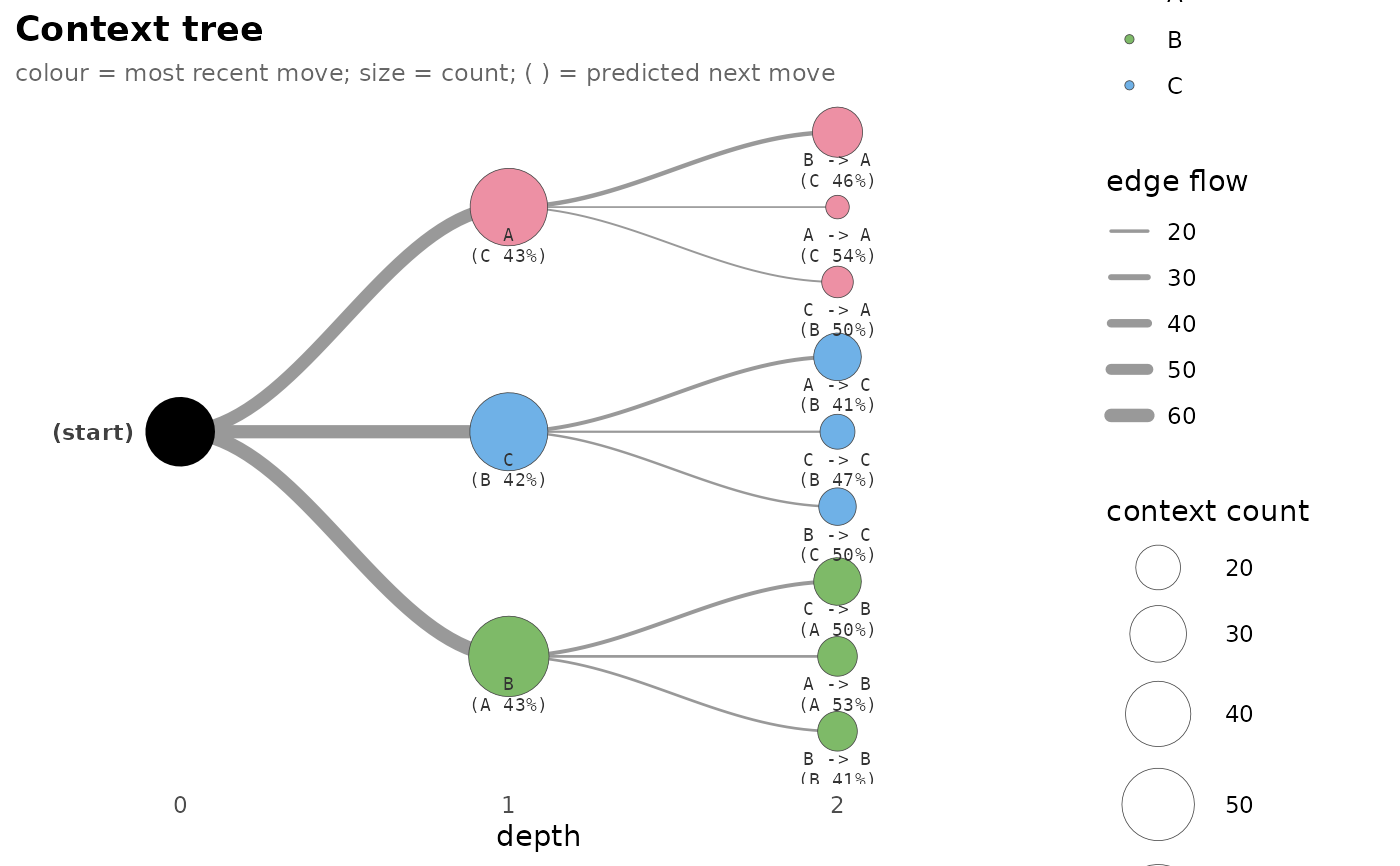

  • "horizontal" (default) — pure-ggplot2 left-to-right phylogram: root on the left, contexts fanned out vertically to the right, each labelled beneath with its full arrow-notation context and (by default) its modal prediction "(state pct%)" on a second line. Node fill is the most recent move (rightmost token), so each branch off a depth-1 hub shares a colour. Set show_prediction = FALSE for context-only labels.

  • "dendrogram" — pure-ggplot2 radial tree: root at the centre, leaves on the outer ring.

  • "icicle" — circular partition / sunburst via ggraph (Suggests); inner ring carries full state names, outer rings carry 3-letter abbreviations.

  • "interactive" — visNetwork htmlwidget (Suggests). A draggable, zoomable hierarchical tree; node size = context count and edge width = child's count (“flow”), the same encoding as the static styles. Hover for a tooltip with the full pathway, count, modal next state, and the complete next-state distribution.

Common encoding: node size = context count, edge thickness = child's count (“flow”). Node fill is the most recent move (rightmost token of the context) in the "horizontal" style; the "dendrogram", "icicle", and "interactive" styles colour by the branching (oldest) token.

Usage

# S3 method for class 'transitiontrees'
plot(
  x,
  style = c("horizontal", "dendrogram", "icicle", "interactive"),
  point_size_range = NULL,
  edge_size_range = NULL,
  ...
)

Arguments

x

A transitiontrees.

style

One of "horizontal" (default), "dendrogram", "icicle", or "interactive".

point_size_range

Numeric length-2 vector controlling the minimum and maximum node-point size. Default c(5, 16) for "dendrogram", c(4, 14) for "horizontal", c(10, 45) (pixels) for "interactive". Ignored by "icicle".

edge_size_range

Numeric length-2 vector for edge width. Default c(0.3, 2.5) for the static styles, c(1, 10) (pixels) for "interactive". Ignored by "icicle".

...

Passed to the chosen backend. For style = "horizontal", show_prediction (logical, default TRUE) toggles each node's modal prediction "(state pct%)" on a second label line; set FALSE for context-only labels. For style = "interactive", width / height size the htmlwidget.

Value

A ggplot object for the three static styles; an htmlwidget for "interactive".

Details

"icicle" requires ggraph + tidygraph; "interactive" requires visNetwork. The dispatcher errors informatively if a needed Suggests dependency is missing.

Examples

# \donttest{
set.seed(1)
m <- matrix(sample(c("A","B","C"), 200, TRUE), 20)
tr <- context_tree(m, max_depth = 2L, min_count = 3L)
plot(tr)                           # left-to-right phylogram (default)

plot(tr, style = "dendrogram")     # radial dendrogram

if (requireNamespace("ggraph", quietly = TRUE) &&
    requireNamespace("tidygraph", quietly = TRUE))
  plot(tr, style = "icicle")       # sunburst (needs ggraph + tidygraph)

if (requireNamespace("visNetwork", quietly = TRUE))
  plot(tr, style = "interactive")  # visNetwork htmlwidget (Suggests)


# }
