Sequence Index Snake Plot

Source: R/sequence_snake.R
sequence_snake.Rd

Displays a state sequence as colored blocks flowing through a serpentine (boustrophedon) layout. Each block represents one time point colored by its state. Blocks flow continuously through both bands AND arcs, wrapping a long sequence into a compact multi-row display.

Usage

sequence_snake(
  sequence,
  states = NULL,
  colors = NULL,
  rows = NULL,
  band_height = 28,
  band_gap = 18,
  plot_width = 500,
  margin = c(top = 30, right = 10, bottom = 50, left = 80),
  orientation = "horizontal",
  start_from = "left",
  flow = c("natural", "snake"),
  show_labels = TRUE,
  show_legend = TRUE,
  show_numbers = FALSE,
  show_state = FALSE,
  state_size = 0.35,
  show_ticks = FALSE,
  tick_labels = NULL,
  transition_labels = NULL,
  transition_pos = NULL,
  tick_color = "#333333",
  tick_length = 5,
  tick_size = 0.4,
  style = c("block", "rug"),
  band_color = "#3d3d4a",
  rug_opacity = 0.9,
  jitter = 0,
  border_color = NA,
  block_labels = NULL,
  band_labels = NULL,
  title = NULL,
  background = "white",
  shadow = TRUE,
  text_size = 0.5,
  legend_text_size = 0.8
)

Arguments

sequence

Input in flexible formats:

  • Vector: character, integer, or factor vector of states.

  • Data.frame: first character/factor column is used.

  • Comma-separated string: "A,B,C,A" is split automatically.

  • List: unlisted to a vector.

NA values are dropped with a warning.

states

Character vector of unique states in desired order. If NULL, derived from unique(sequence).

colors

Named character vector of colors keyed by state, or an unnamed vector recycled to match states. If NULL, a built-in qualitative palette is used.

rows

Integer, number of serpentine rows. If NULL, auto-calculated targeting approximately 10 blocks per band.

band_height

Numeric, height of each band in pixels (default 28).

band_gap

Numeric, gap between bands (default 18).

plot_width

Numeric, width of each band (default 500).

margin

Named numeric vector with top, right, bottom, left margins.

orientation

Character, "horizontal" (default) or "vertical".

start_from

Character, "left" (default) or "right".

flow

Character, "natural" (default) or "snake". "natural" reads all bands left-to-right; "snake" uses alternating boustrophedon direction. Default "natural".

show_labels

Logical, show position range labels per row (default TRUE).

show_legend

Logical, draw color legend (default TRUE).

show_numbers

Logical, print small position numbers inside blocks (default FALSE).

show_state

Logical, print the state name inside each block (default FALSE).

state_size

Numeric, text size for state labels (default 0.35).

show_ticks

Logical, draw ruler-style tick marks at block boundaries outside the bands (default FALSE).

tick_labels

Character vector of labels for evenly spaced ruler marks within each band (e.g., month.abb for monthly ticks). Implies show_ticks = TRUE.

transition_labels

Character vector of date labels for state transition points (e.g., c("Oct 2017", "Apr 2019")). One label per transition (length = number of state changes).

transition_pos

Numeric vector of fractional block positions for transition labels (e.g., c(6.5, 24.3)). When provided, labels are placed at exact interpolated positions along the serpentine path rather than at state-change boundaries.

tick_color

Color for tick marks (default "#333333").

tick_length

Numeric, length of tick marks in pixels (default 5).

tick_size

Numeric, text size for tick labels (default 0.4).

style

Character, "block" (default) or "rug". "block" fills the full band height with colored blocks. "rug" draws thin colored tick marks on a dark ribbon, similar to activity_snake.

band_color

Character, band ribbon color for rug mode (default "#3d3d4a").

rug_opacity

Numeric 0-1, opacity of rug tick marks (default 0.9).

jitter

Numeric 0-1, vertical jitter as fraction of band height (default 0). When > 0, tick marks scatter vertically across the band instead of sitting at a fixed position.

border_color

Color for thin borders between blocks, or NA for no borders (default NA).

block_labels

Optional character vector of labels to display inside each block (same length as sequence). Overrides show_numbers.

band_labels

Character vector of labels to display centered below each band (e.g., year labels). Length must equal rows.

title

Optional character string for plot title.

background

Background color (default "white").

shadow

Logical, draw drop shadows (default TRUE).

text_size

Numeric, text size multiplier for block labels (default 0.5).

legend_text_size

Numeric, legend text size (default 0.8).

Value

Invisible NULL. Called for its side effect of producing a plot.

Examples

set.seed(42)
verbs <- c("Read", "Write", "Discuss", "Listen",
           "Search", "Plan", "Code", "Review")
seq75 <- sample(verbs, 75, replace = TRUE)

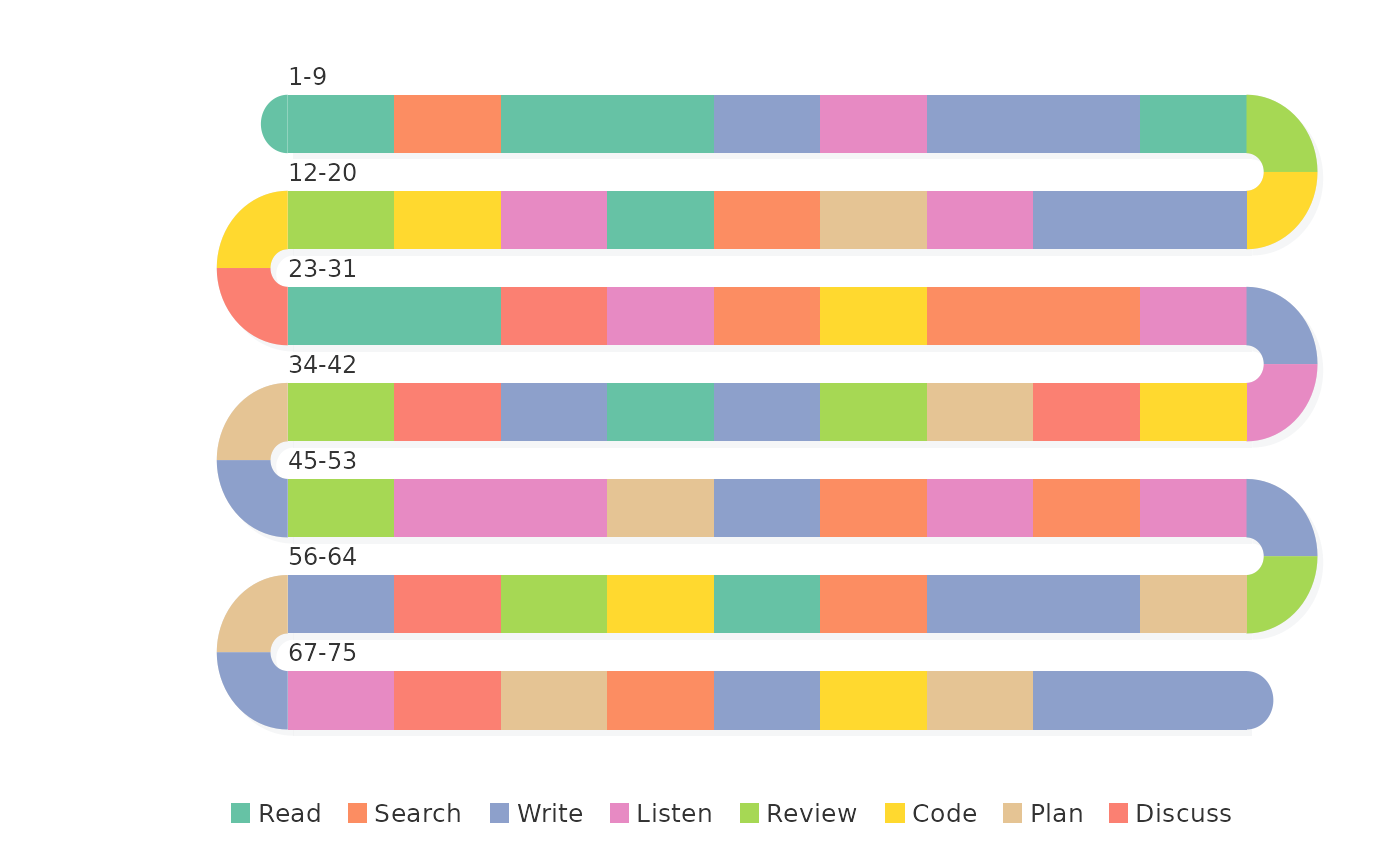

sequence_snake(seq75)

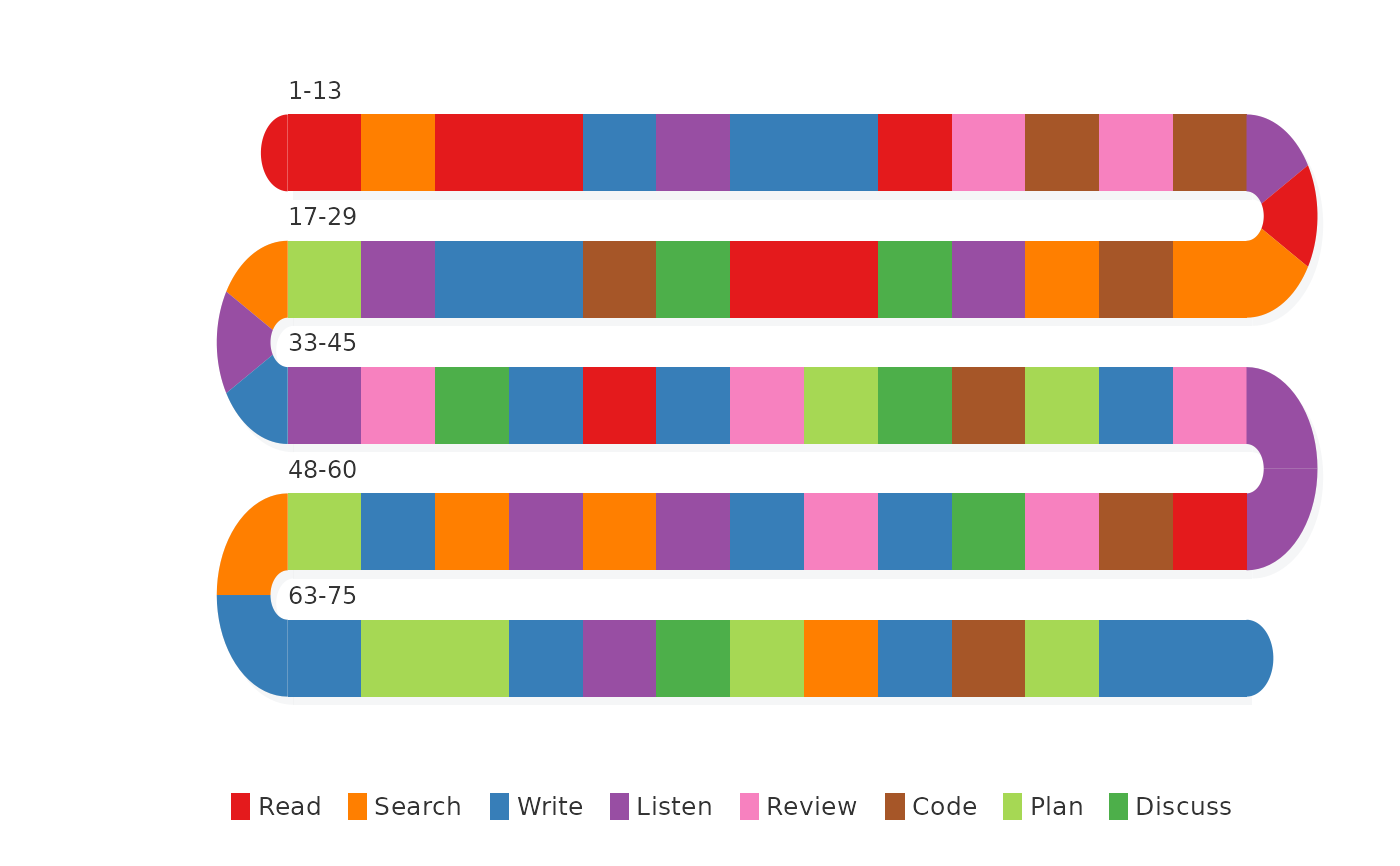

# Custom colors
cols <- c(Read = "#E41A1C", Write = "#377EB8", Discuss = "#4DAF4A",
          Listen = "#984EA3", Search = "#FF7F00", Plan = "#A6D854",
          Code = "#A65628", Review = "#F781BF")
sequence_snake(seq75, colors = cols, rows = 5)
