A daily activity timeline where each band is one day and colored ticks or blocks on a dark ribbon represent events. The serpentine (boustrophedon) layout connects days via U-turn arcs.

Usage

activity_snake(
  data,
  band_height = 28,
  band_gap = 18,
  day_start = 360,
  day_end = 1440,
  plot_width = 500,
  band_color = "#3d3d4a",
  event_color = "#d4a843",
  arc_color = "#2a2a3a",
  band_opacity = 0.9,
  arc_opacity = 0.85,
  event_opacity = 0.85,
  tick_width = 1.5,
  show_grid = TRUE,
  show_total = TRUE,
  show_count = FALSE,
  show_hour_labels = TRUE,
  show_arc_labels = TRUE,
  shadow = TRUE,
  grid_color = "rgba(255,255,255,0.25)",
  label_color = "#cccccc",
  label_size = 0.85,
  label_align = "left",
  orientation = c("horizontal", "vertical"),
  start_from = c("left", "right"),
  flow = c("snake", "natural"),
  day_format = NULL,
  legend = NULL,
  title = NULL,
  margin = c(top = 30, right = 10, bottom = 50, left = 80),
  background = "white"
)

Arguments

data

Input in one of three formats. (1) POSIXct vector: a bare vector of timestamps, producing rug ticks grouped by day. (2) Numeric format: a data.frame with columns day (character/factor day label), start (numeric minutes from midnight, 0–1440), duration (numeric minutes; 0 = rug tick), and optionally label (character event label). (3) Timestamp format: a data.frame with POSIXct column timestamp (or start), optionally end (POSIXct; if present, duration is computed), duration (numeric minutes; used when end is absent), and label (character event label).

band_height

Numeric. Height of each day band in plot units (default 28).

band_gap

Numeric. Vertical gap between bands (default 18).

day_start

Numeric. Start of the time window in minutes from midnight (default 360 = 6AM).

day_end

Numeric. End of the time window in minutes from midnight (default 1440 = midnight).

plot_width

Numeric. Width of the band area in plot units (default 500).

band_color

Character or character vector. Band ribbon color(s). If a vector, colors cycle per day (default "#3d3d4a").

event_color

Character or character vector. Event tick/block color(s). If a vector, colors cycle per day (default "#d4a843").

arc_color

Character. Overnight arc color (default "#2a2a3a").

band_opacity

Numeric 0-1 (default 0.90).

arc_opacity

Numeric 0-1 (default 0.85).

event_opacity

Numeric 0-1 (default 0.85).

tick_width

Numeric. Minimum event width in plot units (default 1.5). Use 1.0 for thin rug style.

show_grid

Logical. Show hour gridlines (default TRUE).

show_total

Logical. Show total duration after day label (default TRUE).

show_count

Logical. Show event count in parentheses after day label (default FALSE).

show_hour_labels

Logical. Show hour labels at bottom (default TRUE).

show_arc_labels

Logical. Show "12AM" at arc tips (default TRUE).

shadow

Logical. Draw drop shadows (default TRUE).

grid_color

Character. Gridline color (default "rgba(255,255,255,0.25)").

label_color

Character. Day label color (default "#cccccc").

label_size

Numeric. Label font size multiplier (default 0.85).

label_align

Character. Label alignment: "left" (default), "right", or "direction" (follows band reading direction).

orientation

Character: "horizontal" (default) or "vertical". Controls whether the snake runs left-right or top-bottom.

start_from

Character: "left" (default) or "right". Which side the first band starts from.

flow

Character, "snake" (default) or "natural". "snake" uses alternating boustrophedon direction; "natural" reads all bands in the same direction.

day_format

Optional strftime format for day labels when start is POSIXct (e.g., "%a" for "Mon", "%Y-%m-%d" for dates). NULL = auto-detect ("%a" for 7 or fewer days, "%Y-%m-%d" otherwise).

legend

List of legend items, each with label and color. NULL for no legend.

title

Optional plot title.

margin

Named numeric vector with top, right, bottom, left margins.

background

Background color (default "white").

Value

Invisible snake_layout object (for downstream use).

Examples

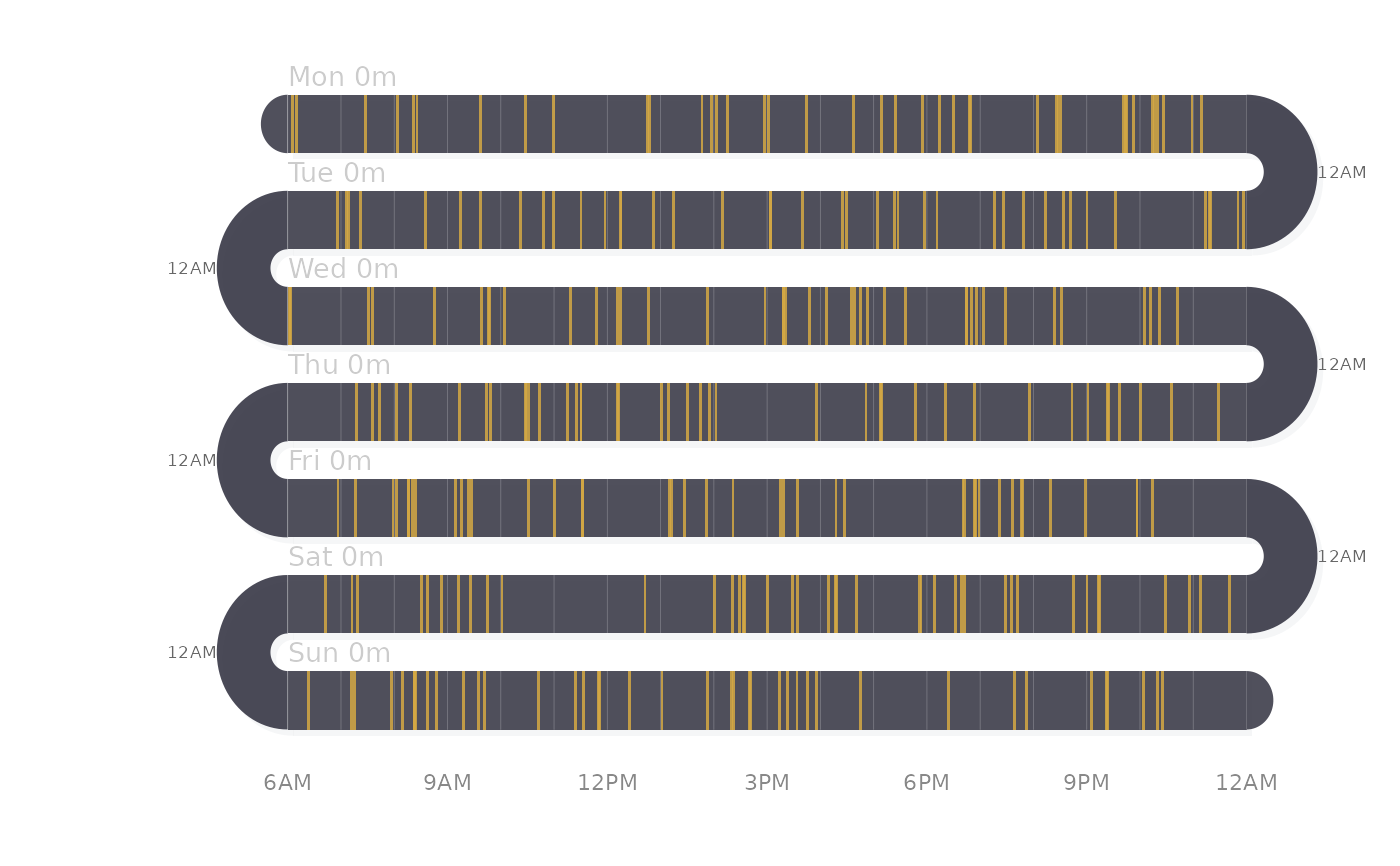

# Weekly rug-style activity plot
set.seed(42)
days <- c("Mon", "Tue", "Wed", "Thu", "Fri", "Sat", "Sun")
d <- data.frame(
  day      = rep(days, each = 40),
  start    = round(runif(280, 360, 1400)),
  duration = 0
)
activity_snake(d)

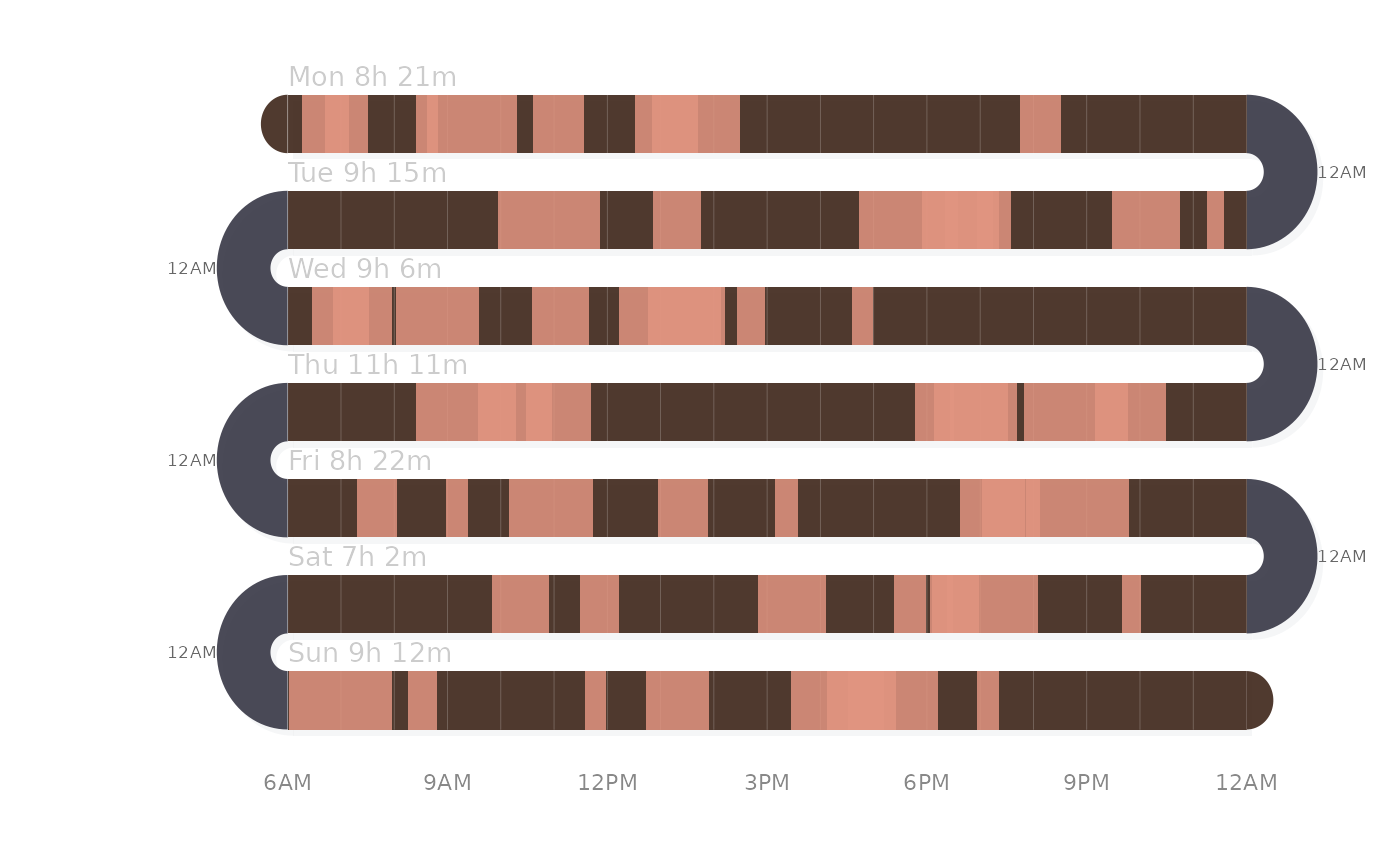

# Duration blocks
d2 <- data.frame(
  day      = rep(days, each = 8),
  start    = round(runif(56, 360, 1200)),
  duration = round(runif(56, 15, 120))
)
activity_snake(d2, event_color = "#e09480", band_color = "#3d2518")
