Plot method for mosaic_analysis objects — plot.mosaic

Re-renders the flat mosaic from the stored contingency table and residuals, so styling can be changed without re-running the test. Any flat-mosaic styling argument (tile_label, pct_base, col_label_side, legend_size, ...) may be overridden via ....

Usage

# S3 method for class 'mosaic_analysis'
plot(x, ...)

Arguments

x: A mosaic_analysis object.
...: Styling overrides forwarded to the flat renderer.

Value

The ggplot object, invisibly (drawn as a side effect).

Examples

df <- data.frame(
  a = sample(c("X", "Y", "Z"), 200, replace = TRUE),
  b = sample(c("P", "Q"), 200, replace = TRUE)
)
res <- mosaic_analysis(df, "a", "b", min_count = 5)
# \donttest{

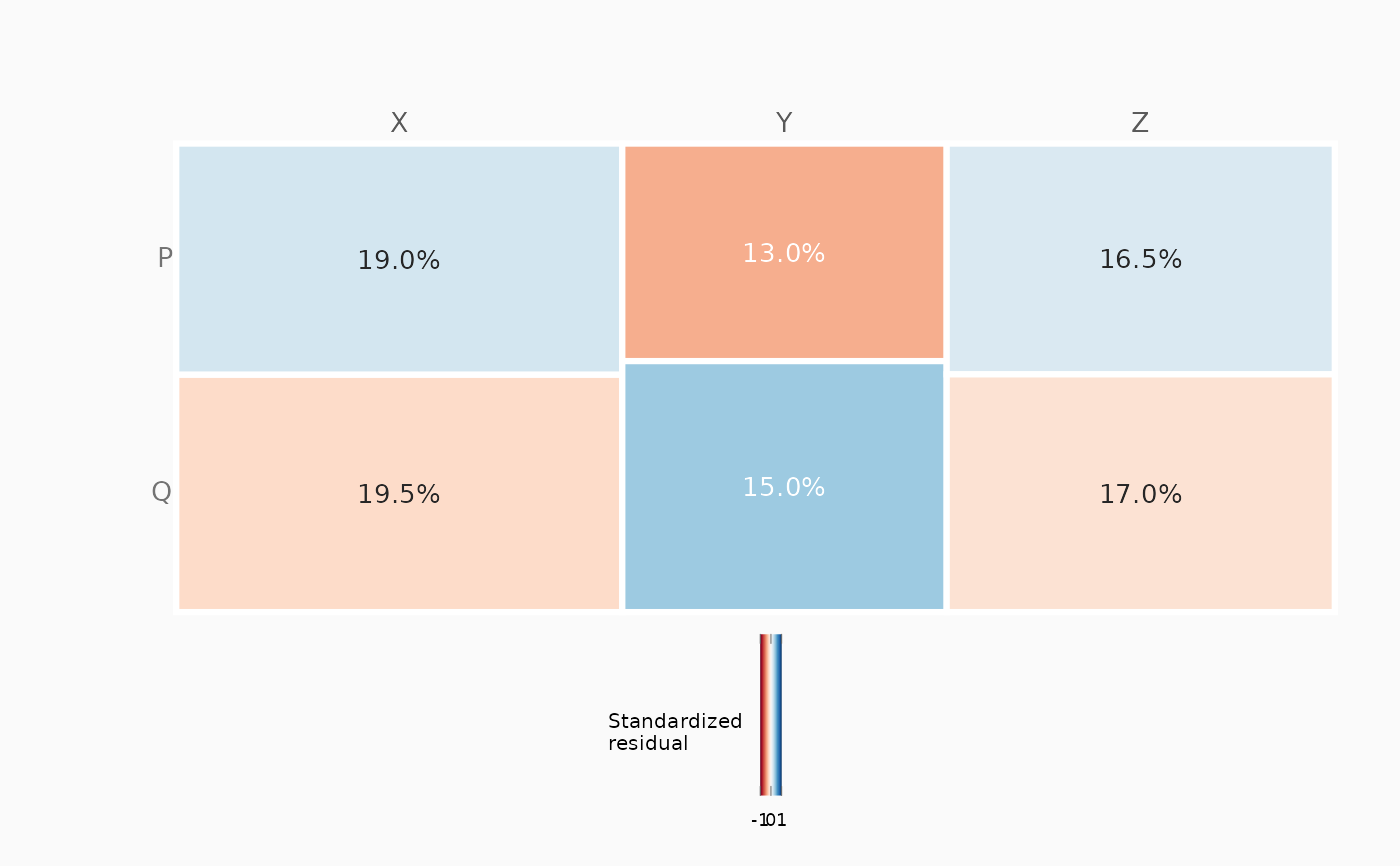

plot(res, tile_label = "percent", legend_position = "bottom")

# }
