The dataset

A transition network summarises sequences into one matrix and, in doing so, throws away who did what and when. Sequence plots keep every sequence visible: they show whether a network’s dominant transitions come from most learners or from a few, whether states cluster in time, and where sequences end. trajectories ships with Nestimate: 138 student sequences × 15 weeks, three states (Active, Average, Disengaged) plus NA for missed weeks; a run of NA at the end of a row marks drop-out.

data(trajectories)
dim(trajectories)
#> [1] 138  15
head(trajectories)
#>      1         2            3            4            5            6
#> [1,] "Active"  "Disengaged" "Disengaged" "Disengaged" "Active"     "Active"
#> [2,] "Average" "Average"    "Average"    "Average"    "Average"    "Average"
#> [3,] "Average" "Active"     "Active"     "Active"     "Active"     "Active"
#> [4,] "Active"  "Active"     "Active"     "Active"     "Active"     "Average"
#> [5,] "Active"  "Active"     "Active"     "Average"    "Active"     "Average"
#> [6,] "Average" "Average"    "Disengaged" "Average"    "Disengaged" "Disengaged"
#>      7         8         9         10           11        12
#> [1,] "Active"  "Active"  "Average" "Active"     "Average" "Active"
#> [2,] "Average" "Average" "Average" "Active"     "Average" "Average"
#> [3,] "Active"  "Active"  "Active"  "Average"    "Active"  "Active"
#> [4,] "Average" "Active"  "Active"  "Active"     "Average" "Active"
#> [5,] "Active"  "Active"  "Active"  "Disengaged" "Active"  "Active"
#> [6,] "Average" "Average" "Average" "Disengaged" "Average" "Disengaged"
#>      13        14        15
#> [1,] NA        NA        NA
#> [2,] "Average" "Average" "Average"
#> [3,] "Active"  "Active"  "Active"
#> [4,] "Average" "Active"  "Average"
#> [5,] "Active"  "Average" "Average"
#> [6,] "Average" "Average" "Average"
sort(unique(as.vector(trajectories)), na.last = NA)
#> [1] "Active"     "Average"    "Disengaged"

sequence_plot() is the single entry point for three views of this data:

type What it shows Uses dendrogram? Facets?
"heatmap" (default) dense carpet, rows sorted by a distance/dendrogram yes no
"index" carpet without dendrogram, row-gap optional no yes
"distribution" stacked area / bar of state proportions over time no yes

Defaults: the legend sits on the right (legend = NULL resolves to "right"), frame = FALSE.

1. type = "heatmap" — clustered carpet

Start here. Sorting the rows by sequence similarity puts learners with the same trajectory next to each other, so recurring trajectories appear as bands and the dendrogram shows how many distinct groups the data suggest.

1.1 Default — LCS distance, ward.D2 dendrogram

sequence_plot(trajectories)

1.2 Switch the sort strategy

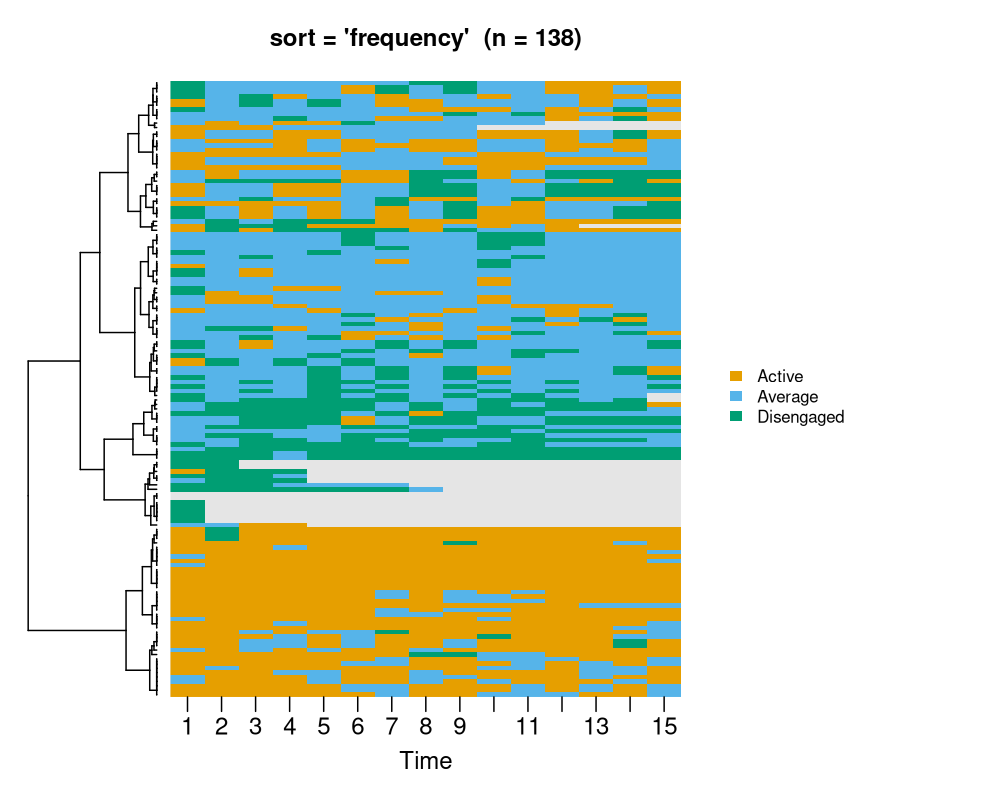

sequence_plot(trajectories, sort = "frequency",
              main = "sort = 'frequency'")

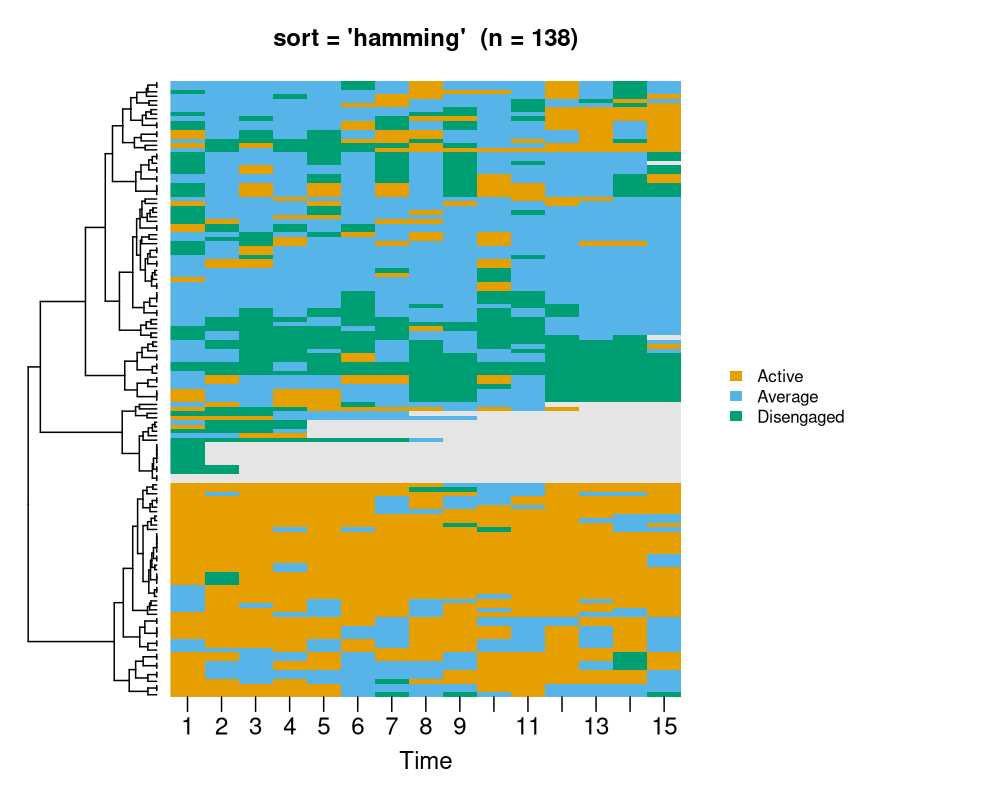

sequence_plot(trajectories, sort = "hamming",
              main = "sort = 'hamming'")

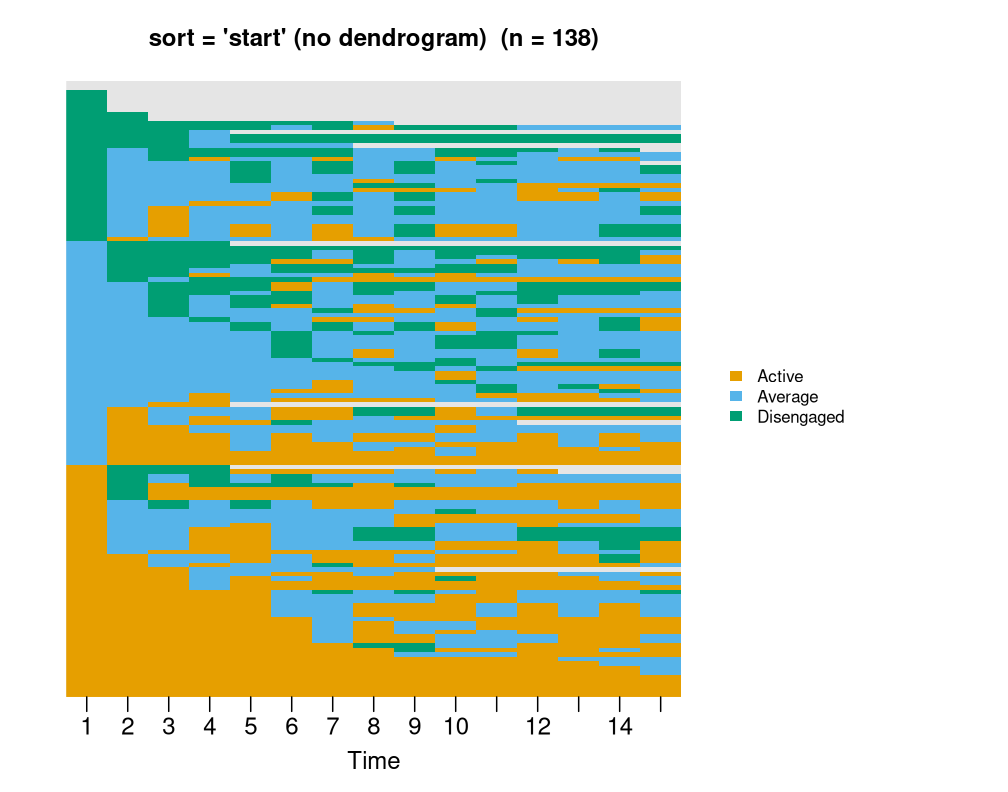

sequence_plot(trajectories, sort = "start",
              main = "sort = 'start' (no dendrogram)")

Available sorts: lcs (default), frequency, start, end, plus any build_clusters() distance — hamming, osa, lv, dl, qgram, cosine, jaccard, jw.

1.3 Cluster separators with k

Cut the dendrogram into k groups and overlay thin horizontal lines at the cluster boundaries in the ordered rows. Tune with k_color and k_line_width.

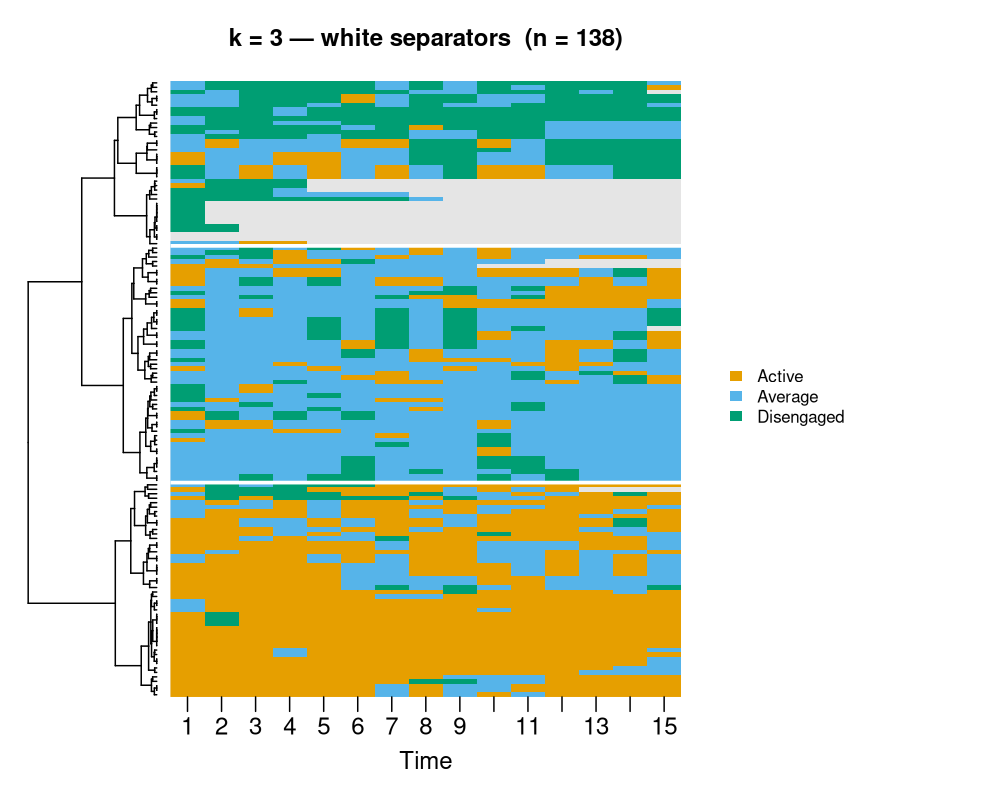

sequence_plot(trajectories, k = 3,
              main = "k = 3 — white separators")

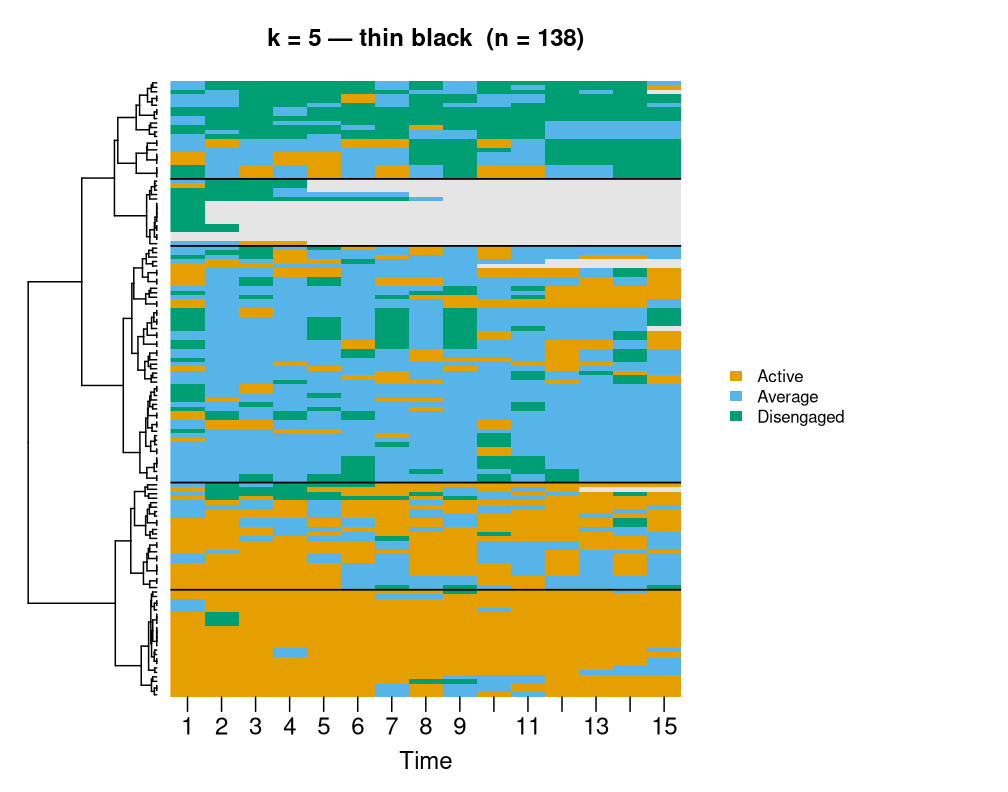

sequence_plot(trajectories, k = 5,
              k_color = "black", k_line_width = 1.2,
              main = "k = 5 — thin black")

1.4 Legend position, custom palette, title

sequence_plot(trajectories,
              legend = "bottom",
              legend_title = "Engagement",
              state_colors = c("#009E73", "#E69F00", "#D55E00"),
              main = "Custom palette + bottom legend")

1.5 Cell borders + tick thinning

sequence_plot(trajectories,
              cell_border = "grey60", tick = 3,
              main = "Cell grid + every-3rd tick")

1.6 frame = TRUE brings back the outer box

sequence_plot(trajectories, frame = TRUE,
              main = "frame = TRUE")

2. type = "index" — gap-ready carpet with facets

Use it once the groups are known (clusters, conditions): each panel holds one group’s sequences, so groups are compared side by side. No dendrogram. Rows are sorted within each panel by sort. Supports group (vector or auto from a net_clustering) plus ncol / nrow facet grids.

2.1 Single panel

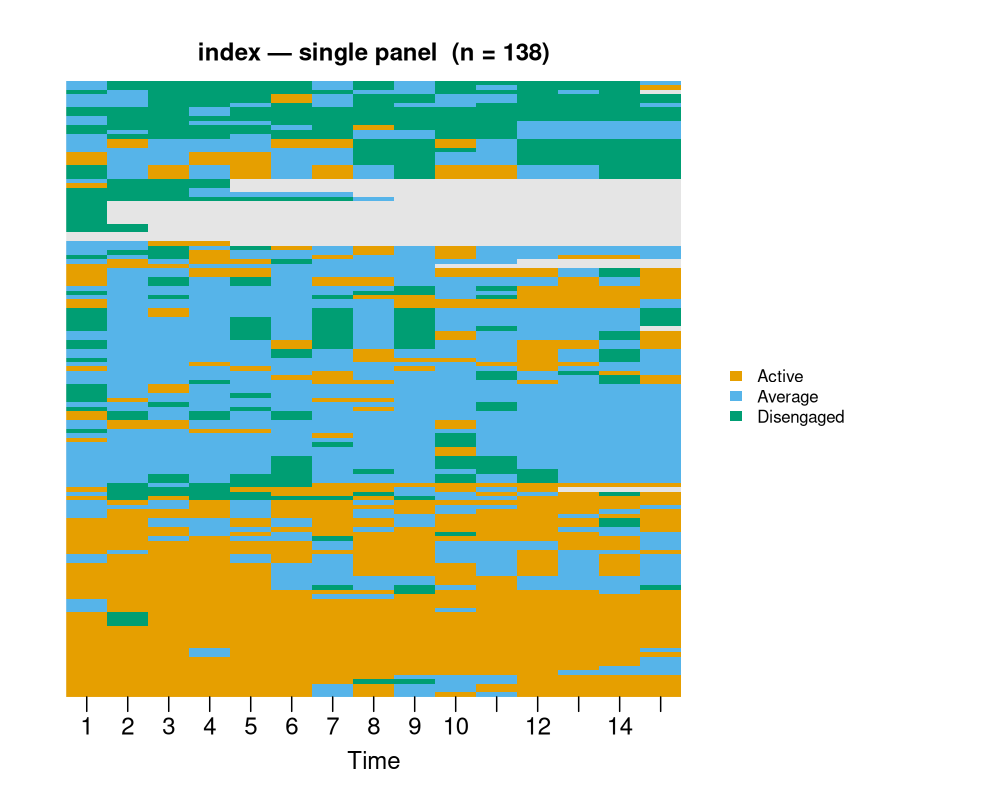

sequence_plot(trajectories, type = "index",
              main = "index — single panel")

2.2 Visible row gaps

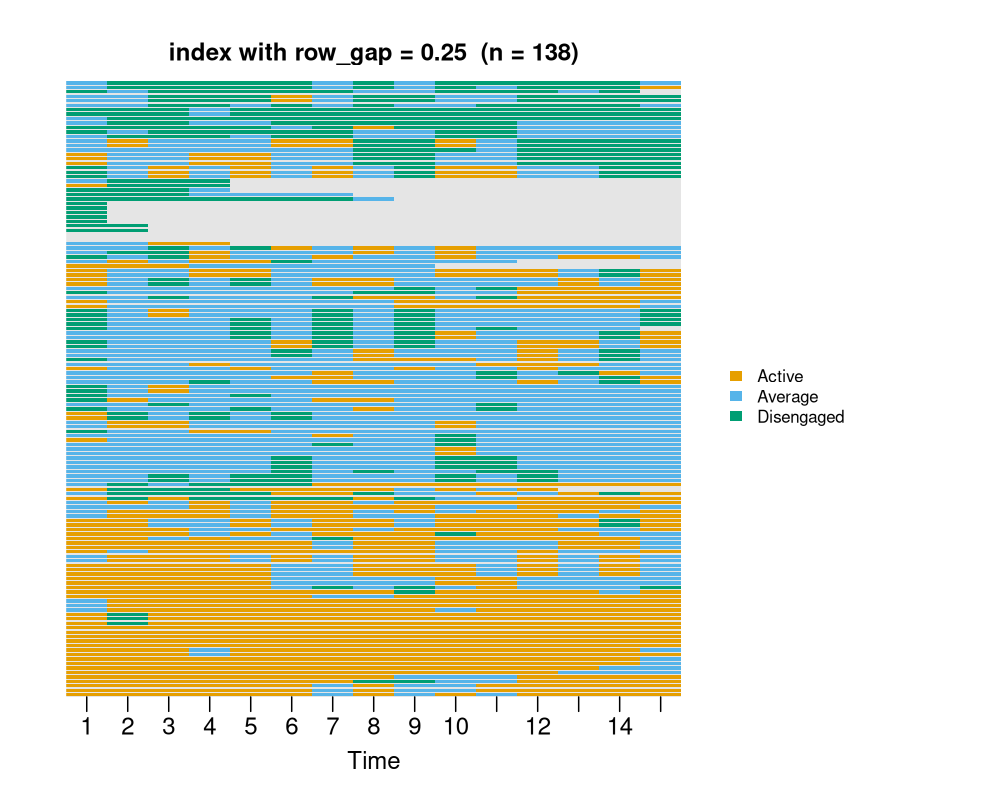

sequence_plot(trajectories, type = "index", row_gap = 0.25,
              main = "index with row_gap = 0.25")

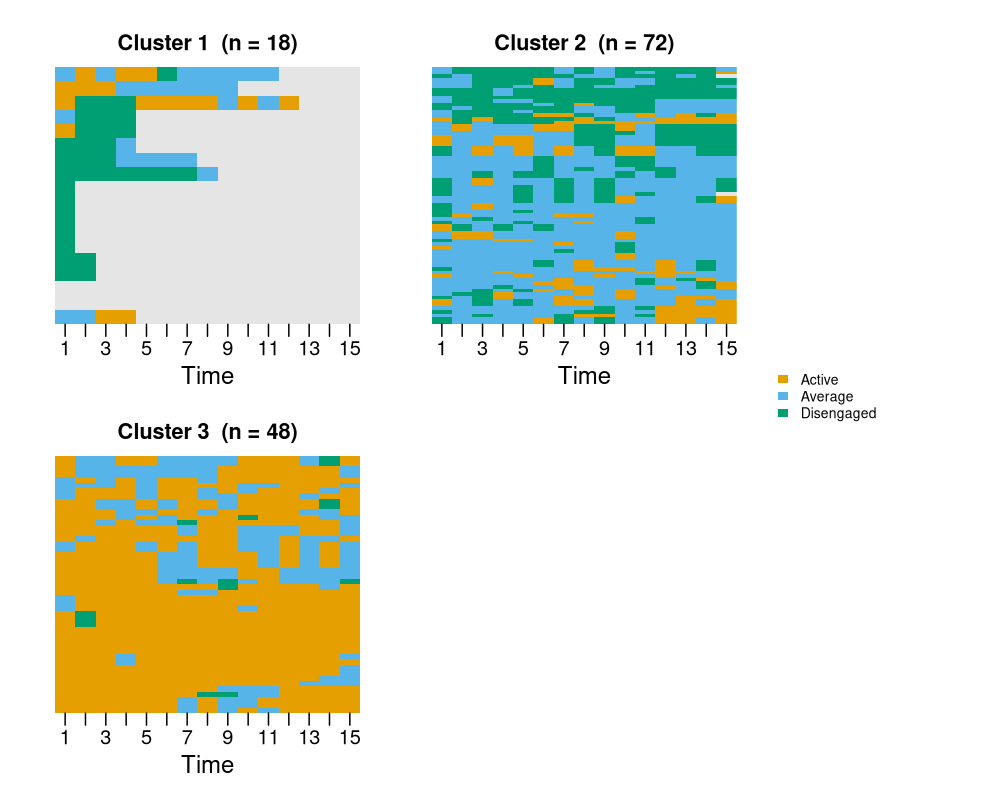

2.3 Faceted by net_clustering (auto 2×2 for k = 3)

cl <- build_clusters(trajectories, k = 3L,
                   dissimilarity = "hamming", method = "ward.D2")
sequence_plot(cl, type = "index",
              main = "index faceted by build_clusters(k = 3)")

2.4 Force a 1×3 row

sequence_plot(cl, type = "index", ncol = 3, nrow = 1,

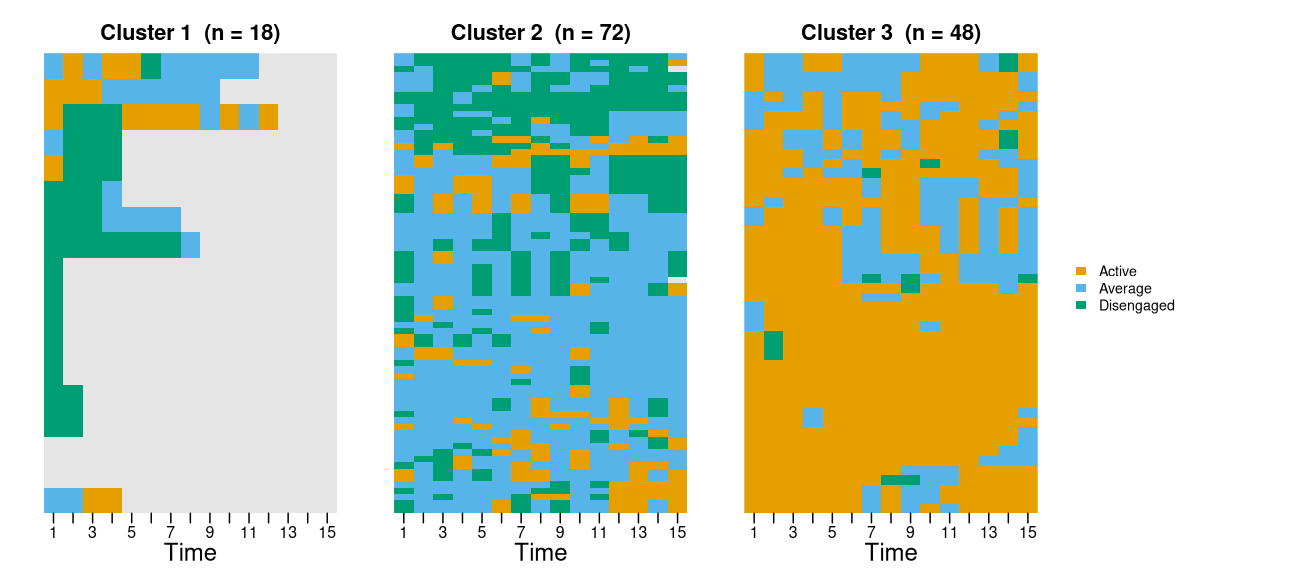

              main = "index — ncol = 3, nrow = 1")

3. type = "distribution" — state proportions over time

Stacked area or bar chart of state frequencies per time column. It answers when rather than who: the share of each state at each time step, which shows trends (such as rising disengagement) that a transition network, pooled over time, cannot.

3.1 Default stacked area

sequence_plot(trajectories, type = "distribution",
              main = "distribution — stacked area")

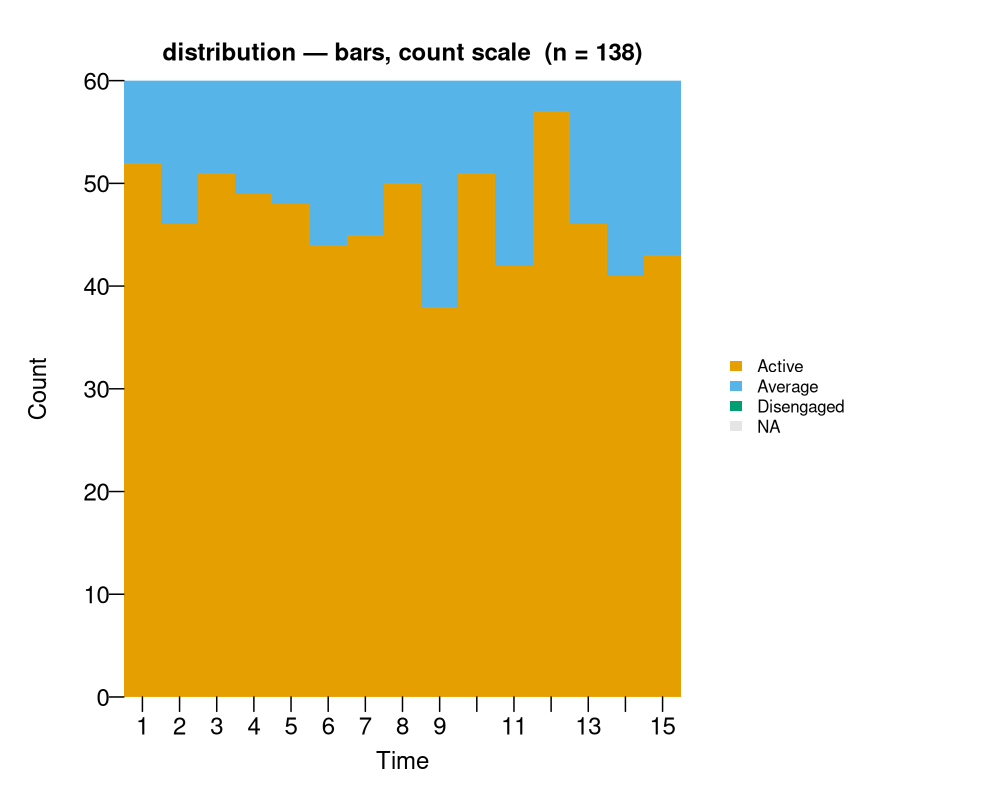

3.2 Stacked bars, count scale

sequence_plot(trajectories, type = "distribution",
              geom = "bar", scale = "count",
              main = "distribution — bars, count scale")

3.3 NA band on/off

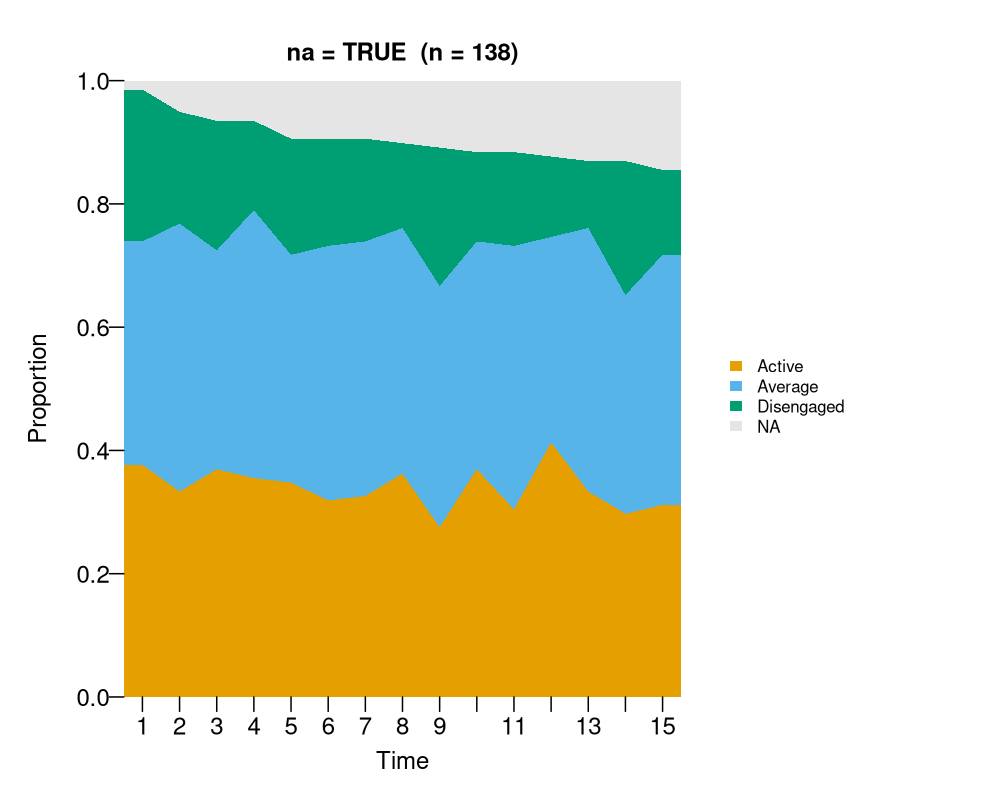

sequence_plot(trajectories, type = "distribution", na = TRUE,
              main = "na = TRUE")

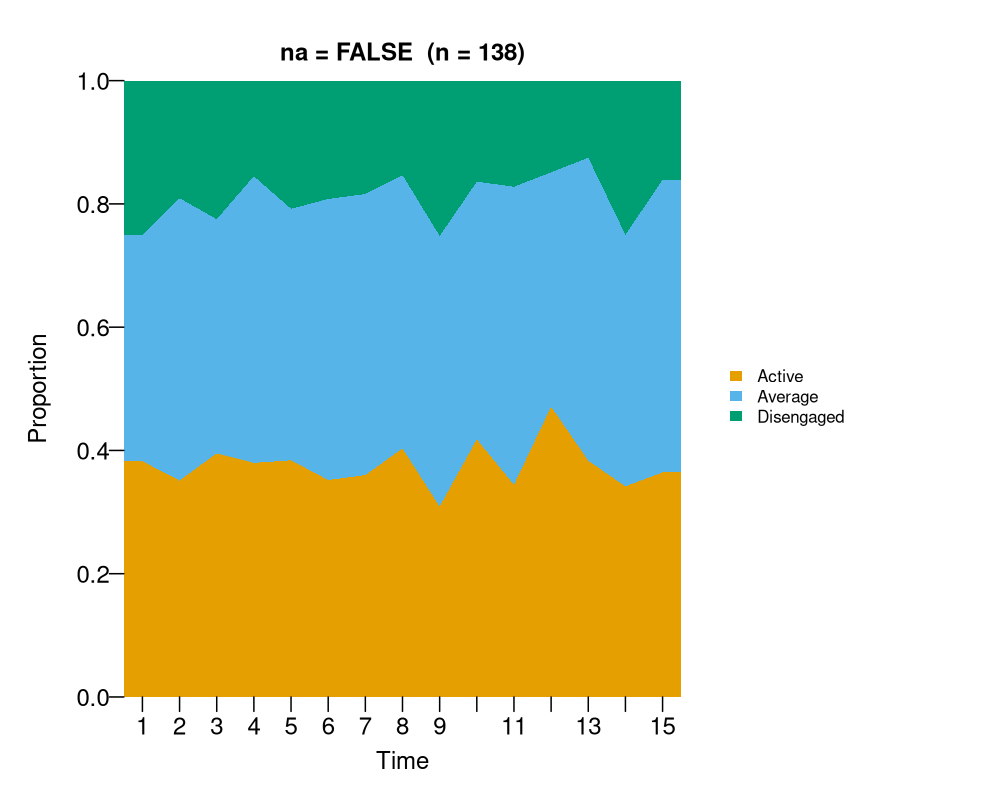

sequence_plot(trajectories, type = "distribution", na = FALSE,
              main = "na = FALSE")

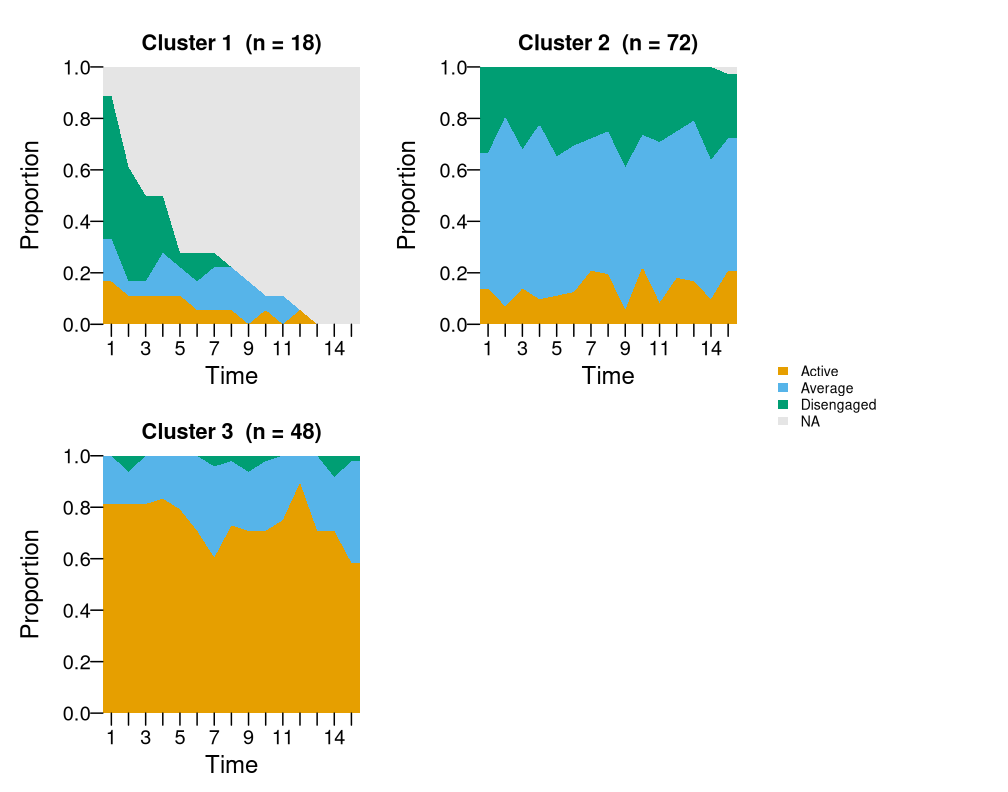

3.4 Faceted by cluster

sequence_plot(cl, type = "distribution",
              main = "distribution by cluster (k = 3)")

Cheat sheet

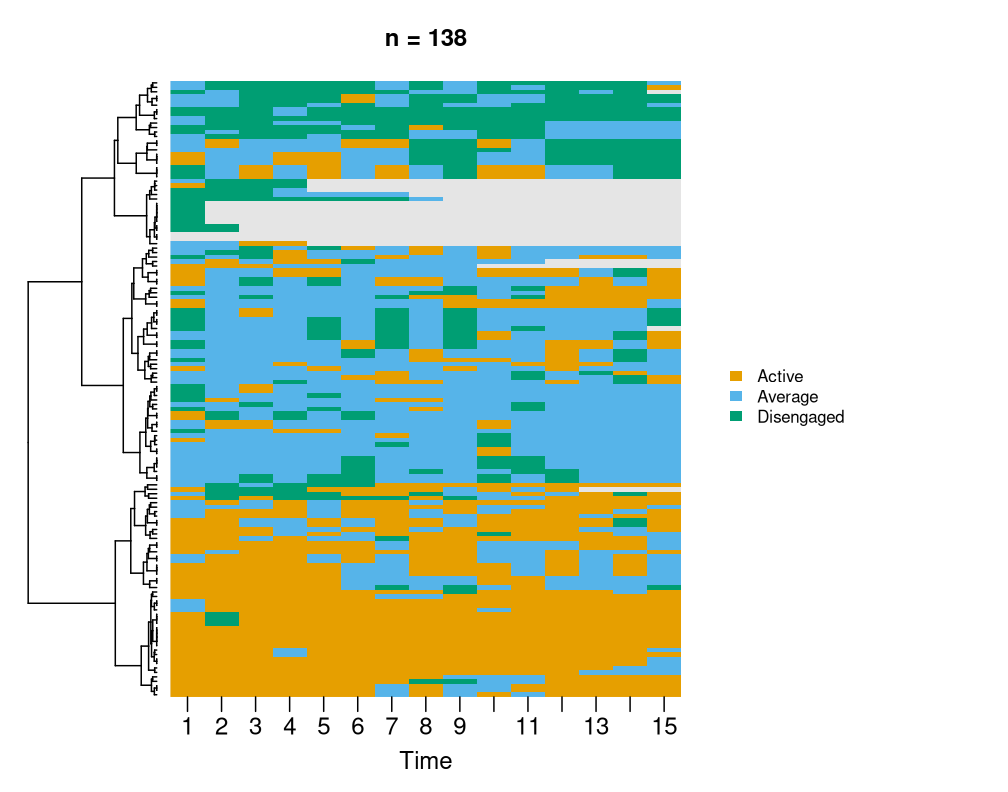

# Always explore first with the default:
sequence_plot(trajectories)


# Zoom in on cluster structure:
sequence_plot(trajectories, k = 3)

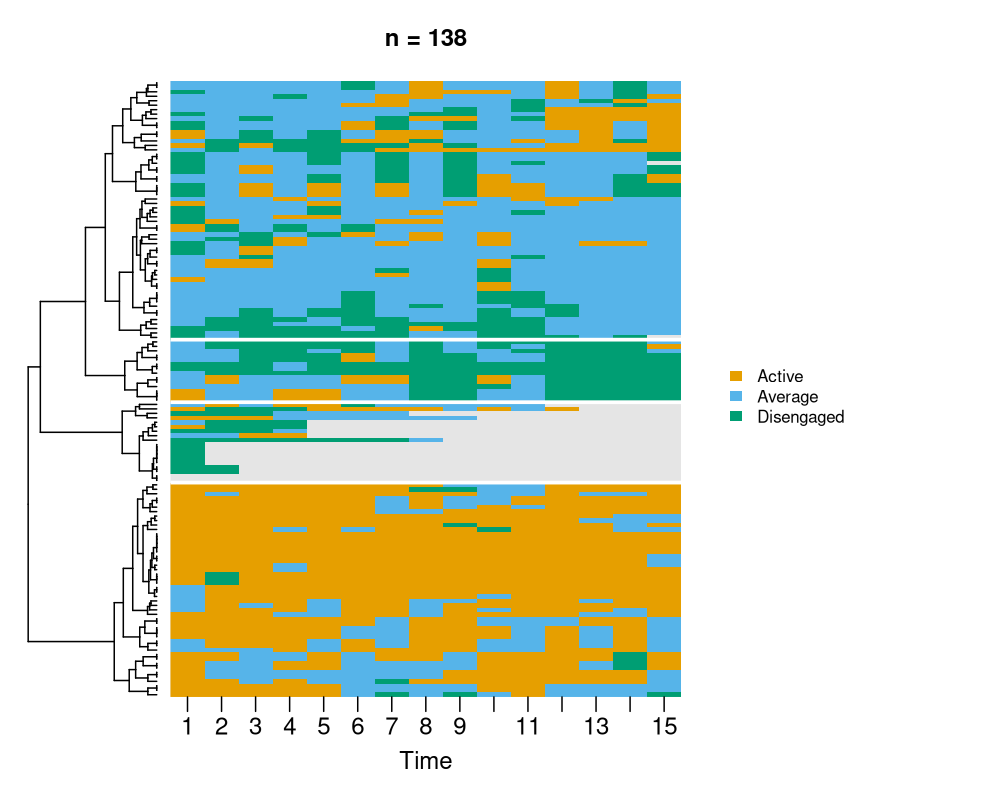

sequence_plot(trajectories, sort = "hamming", k = 4)


# Compare cluster compositions:
cl <- build_clusters(trajectories, k = 3,
                   dissimilarity = "hamming", method = "ward.D2")
sequence_plot(cl, type = "index")

sequence_plot(cl, type = "distribution")


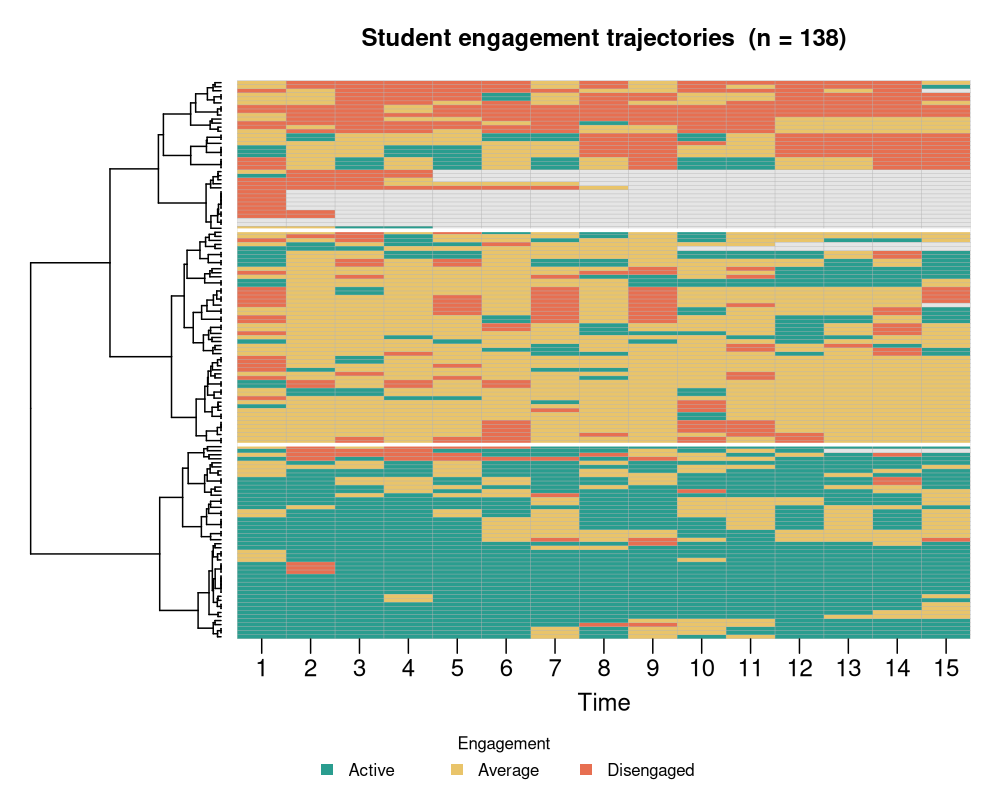

# Polish for a paper:
sequence_plot(trajectories, k = 3,
              state_colors = c("#009E73", "#E69F00", "#D55E00"),
              legend_title = "Engagement",
              legend = "bottom",
              cell_border = "grey70",
              main = "Student engagement trajectories")
