Plot the State Transition Network

Draws states as nodes and transitions as directed edges, with node size encoding a centrality of the transition network. The network comes from Nestimate::build_tna() and the centralities from Nestimate::net_centrality(); cograph::splot() draws it, recognising the Nestimate object and applying TNA styling, node labels, and initial-probability donuts automatically.

Usage

transition_plot(x, ...)

# S3 method for class 'vasstra_sequences'
transition_plot(
  x,
  size = "InStrength",
  weights = c("probability", "count"),
  loops = FALSE,
  size_range = c(8, 18),
  sequences = FALSE,
  colors = NULL,
  main = NULL,
  ...
)

# S3 method for class 'vasstra_trajectories'
transition_plot(
  x,
  size = "InStrength",
  weights = c("probability", "count"),
  loops = FALSE,
  size_range = c(8, 18),
  sequences = FALSE,
  colors = NULL,
  main = NULL,
  group = NULL,
  ...
)

# S3 method for class 'vasstra'
transition_plot(x, ...)

Arguments

x

A vasstra_sequences, vasstra_trajectories, or vasstra object.

...

Additional arguments passed to cograph::splot(), such as layout, threshold, or edge_label_size (which defaults to a value slightly larger than cograph's, so the transition probabilities are easy to read).

size

Centrality measure that sets node size, or "none" to draw every node at one size. Default "InStrength".

weights

"probability" (default) uses row-normalized transition probabilities from Nestimate::build_tna(); "count" uses raw transition counts from Nestimate::build_ftna().

loops

Include self-transitions in the computation. Default FALSE, matching Nestimate::net_centrality().

size_range

Smallest and largest node size. The measure is mapped onto this range anchored at zero, so a state with half the in-strength of the largest draws halfway up the range and sizes stay comparable between plots.

sequences

Draw the state sequences beside the network, the conventional pairing in which the sequences show the raw data and the network summarises its movement. FALSE (default) draws the network alone; TRUE adds an index plot; "index", "heatmap", or "distribution" choose the sequence view. Both panels are drawn on one device, so a state has the same colour in each.

colors

Optional colors, one per state, in state order. Defaults to the shared VaSSTra palette, so the network matches the sequence and state plots. Colors are matched to states by name, so a trajectory that never reaches a state still colours the rest correctly.

main

Optional plot title.

group

Optional trajectory label restricting the network to one trajectory's subjects.

Value

A tidy data frame of the plotted centrality and node size, one row per state, invisibly.

Details

Where flow_plot() shows movement resolved over time, transition_plot() collapses every time step into one network and asks which states attract movement overall.

See also

transition_centrality() for the numbers without a plot, and flow_plot() for time-resolved movement.

Examples

# \donttest{
if (requireNamespace("cograph", quietly = TRUE)) {
  data("engagement", package = "VaSSTra")
  fit <- vasstra(engagement, n_states = 3, n_trajectories = 3)

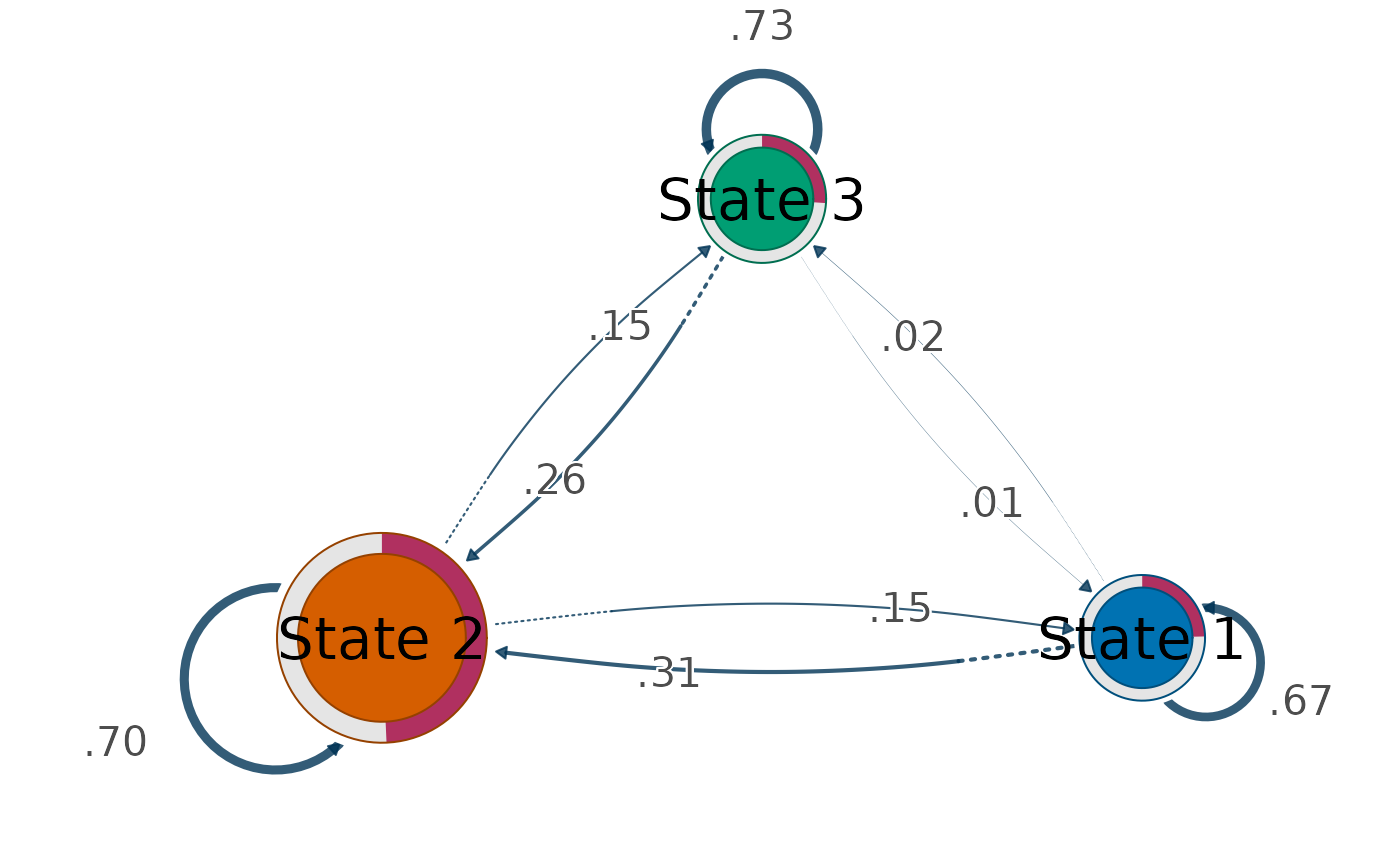

  transition_plot(fit)

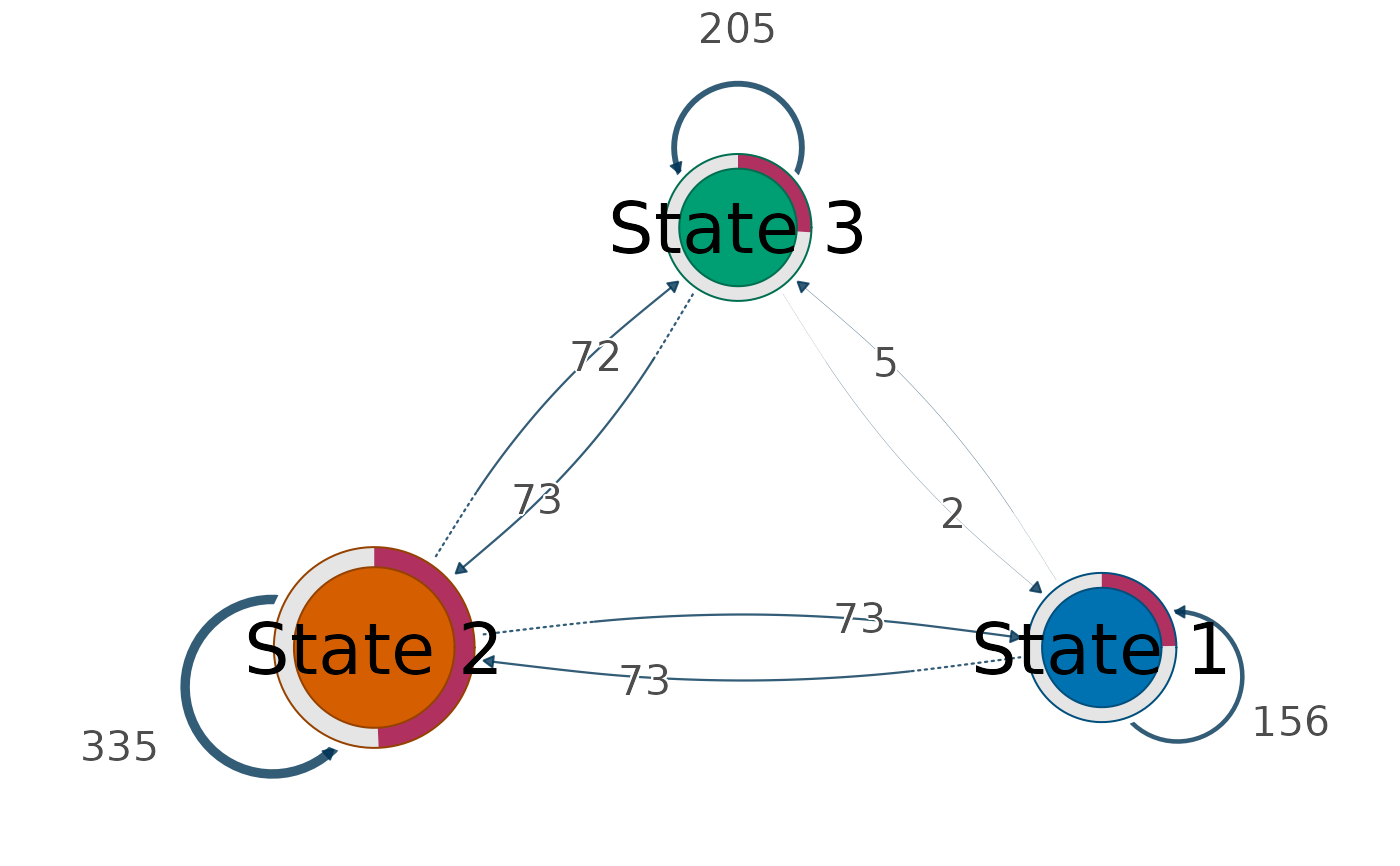

  transition_plot(fit, weights = "count", size = "OutStrength")

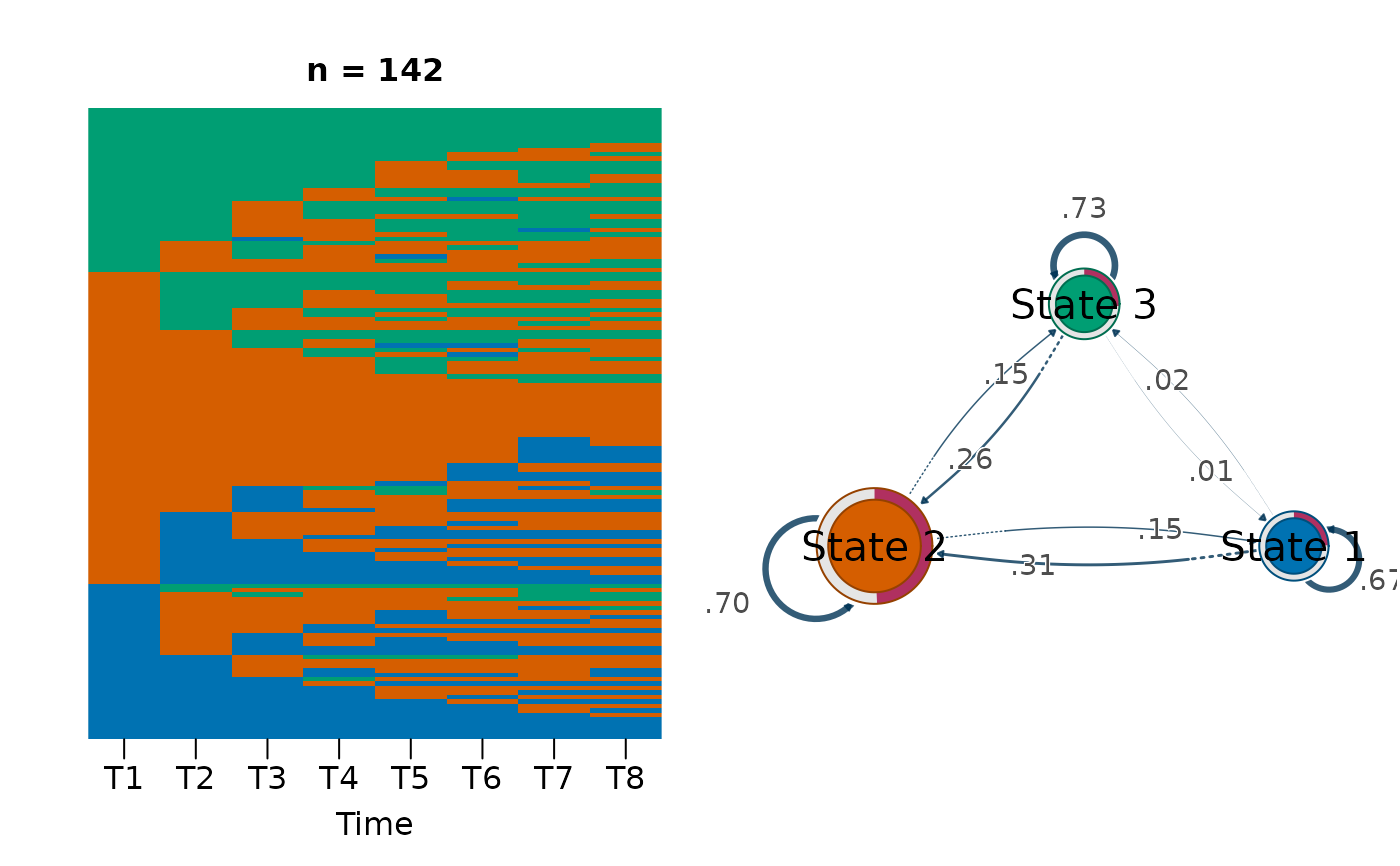

  transition_plot(fit, sequences = TRUE)
}



# }
