Plot Q-Analysis — plot.q_analysis • Nestimate

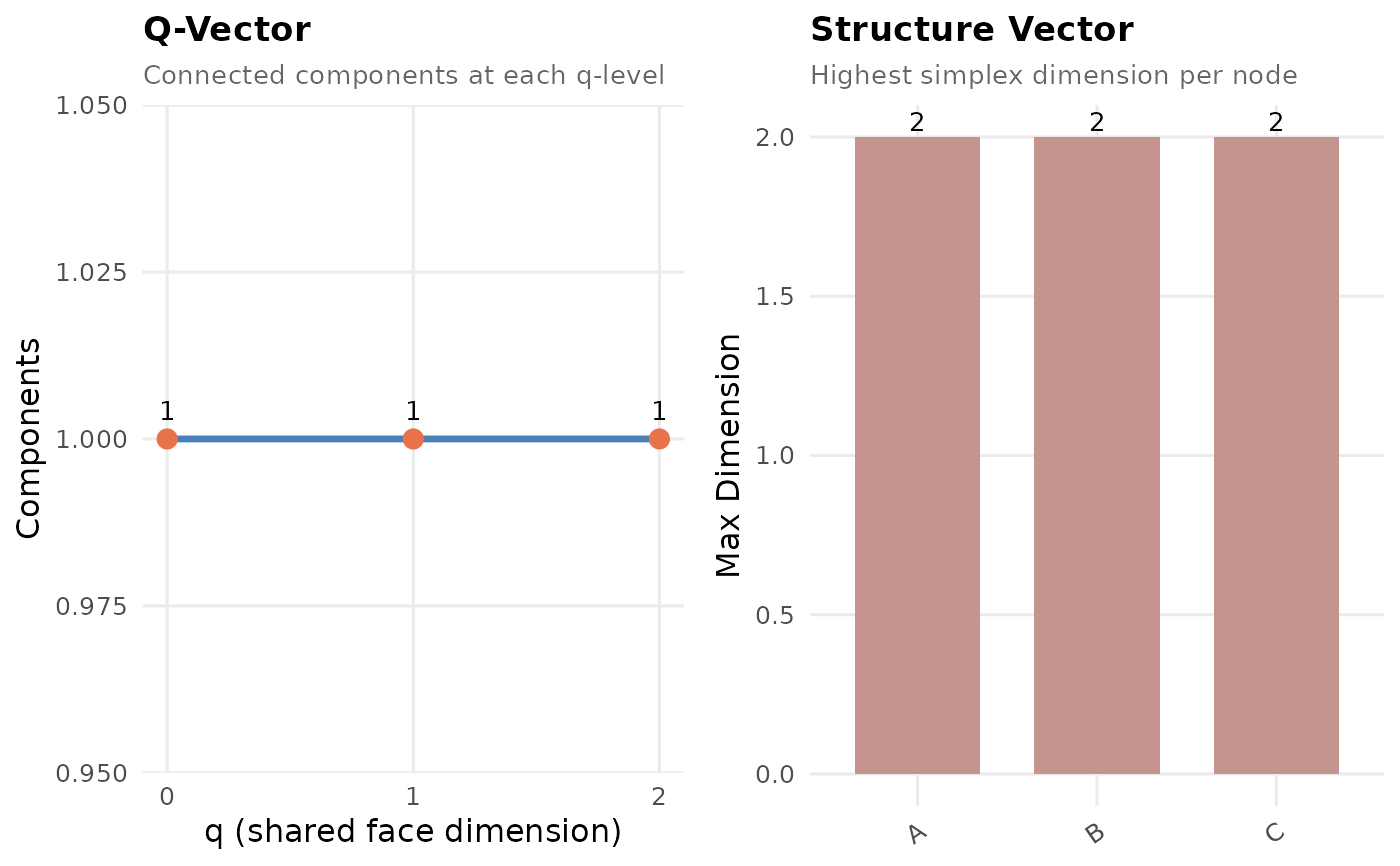

Two panels: Q-vector (components at each connectivity level) and structure vector (max simplex dimension per node).

Usage

# S3 method for class 'q_analysis'
plot(x, combined = TRUE, ...)

Arguments

x: A q_analysis object.
combined: When TRUE (default), the two panels are stitched side-by-side via gridExtra::arrangeGrob. When FALSE, returns a named list (q_vector, structure_vector) of ggplots.
...: Ignored.

Value

A grid grob (invisibly) when combined = TRUE; a named list of two ggplots when combined = FALSE.

Examples

# \donttest{
seqs <- data.frame(
  V1 = c("A","B","C","A","B"),
  V2 = c("B","C","A","B","C"),
  V3 = c("C","A","B","C","A")
)
net <- build_network(seqs, method = "relative")
sc  <- build_simplicial(net, type = "clique")
qa  <- q_analysis(sc)
plot(qa)

# }
