psychnets

Clean-room, self-certifying estimation of cross-sectional psychometric network models in base R.

— by Mohammed Saqr

psychnets implements the principal cross-sectional estimators used in psychometric network analysis entirely in base R. The package provides correlation and partial-correlation networks, the EBIC-regularized Gaussian graphical model (graphical lasso), together with its nonparanormal and unregularized stepwise variants, information-filtering networks including the Triangulated Maximally Filtered Graph (TMFG) and Local–Global inverse covariance estimation, relative-importance networks, the Ising model for binary variables, and the mixed graphical model. Whereas these estimators are conventionally accessed through high-level R packages that delegate numerical optimization to compiled Fortran or C/C++ libraries, psychnets reimplements the complete estimation procedures directly in R. In particular, graphical lasso estimation is commonly performed through qgraph and bootnet, which invoke the Fortran implementation provided by glasso, while Ising and mixed graphical models are typically estimated through IsingFit and mgm, both of which rely on the compiled optimization routines of glmnet. psychnets invokes none of these packages or their underlying compiled numerical libraries. Its only package dependencies are the standard R distributions stats, parallel, graphics, and grDevices.

For every regularized estimator, psychnets reports a numerical certificate of optimality in the form of the Karush–Kuhn–Tucker (KKT) residual associated with the convex optimization problem defining the estimator. The KKT residual quantifies the degree to which the necessary first-order optimality conditions are satisfied and therefore provides a direct measure of convergence. Residual values approaching zero indicate that the numerical solution is effectively stationary with respect to the objective function. Because this diagnostic is computed directly from the fitted solution, its evaluation is independent of external optimization software and does not require comparison with reference implementations.

The implementation philosophy of psychnets is based on four complementary design principles. First, the estimation procedure is fully transparent, as both the statistical methodology and the numerical optimization algorithms are implemented explicitly in R, allowing every computational step to be inspected and reproduced without reference to opaque compiled libraries. Second, estimation is reproducible because convergence behaviour is determined by user-accessible numerical criteria rather than by implementation-specific tolerances embedded within precompiled binaries. Third, the package maintains a minimal dependency structure by avoiding external numerical libraries such as glasso, glmnet, qgraph, and Matrix, together with their associated compiled dependency chains, including Rcpp and RcppArmadillo. Finally, estimation is directly auditable because every regularized solution is accompanied by an optimality certificate that quantifies its numerical accuracy with respect to the objective function being minimized. Consequently, the correctness of an estimated network can be assessed directly from the fitted model itself rather than inferred through agreement with an independent software implementation.

Because each optimization problem is solved to numerical stationarity and model selection is performed using the standard formulation of the Extended Bayesian Information Criterion (EBIC), network recovery reflects the theoretical properties of the estimator rather than artefacts of incomplete optimization. As a consequence, edge selection is not influenced by premature termination of the numerical algorithm, thereby avoiding the inclusion of edges that may arise solely from insufficient convergence of the underlying optimization procedure.

Validation was performed using both simulated data with known generating models and published psychometric datasets to verify the correctness of every implemented estimator. Across all methods, psychnets reproduces the established reference implementations to the numerical precision attainable by those packages, with remaining differences attributable to floating-point arithmetic and solver convergence tolerances. For the EBIC graphical lasso, this practical limit is determined by the convergence criterion of the underlying glasso implementation used by qgraph, which is approximately (10^{-4}). psychnets instead solves each optimization problem to substantially tighter tolerances and reports the Karush–Kuhn–Tucker residual for every regularized fit, providing an independent numerical certificate that the returned solution satisfies the optimality conditions of the estimator.

Installation

# from CRAN (once released)
install.packages("psychnets")

# development version
# install.packages("pak")
pak::pak("mohsaqr/psychnets")

A worked example

psychnets estimates an EBIC-regularized Gaussian graphical model from data or a correlation matrix and reports its certificate on printing. The example uses SRL_GPT, one of the self-regulated-learning datasets shipped with the package (five MSLQ constructs).

library(psychnets)

net <- ebic_glasso(SRL_GPT)   # EBIC graphical lasso of the five MSLQ constructs
net                           # edges, lambda, gamma, and the KKT residual
#> <psychnet> glasso network
#>   nodes: 5   edges: 10   (undirected)
#>   lambda: 0.00861   gamma: 0.5
#>   optimality (KKT residual): 2.21e-10

net_centralities(net)         # strength and expected influence, tidy
#>   node  strength expected_influence
#> 1  CSU 1.1984512         1.19845117
#> 2   IV 1.0012765         1.00127649
#> 3   SE 0.8492185         0.84921854
#> 4   SR 1.2314317         0.53172852
#> 5   TA 0.6082238        -0.09147935

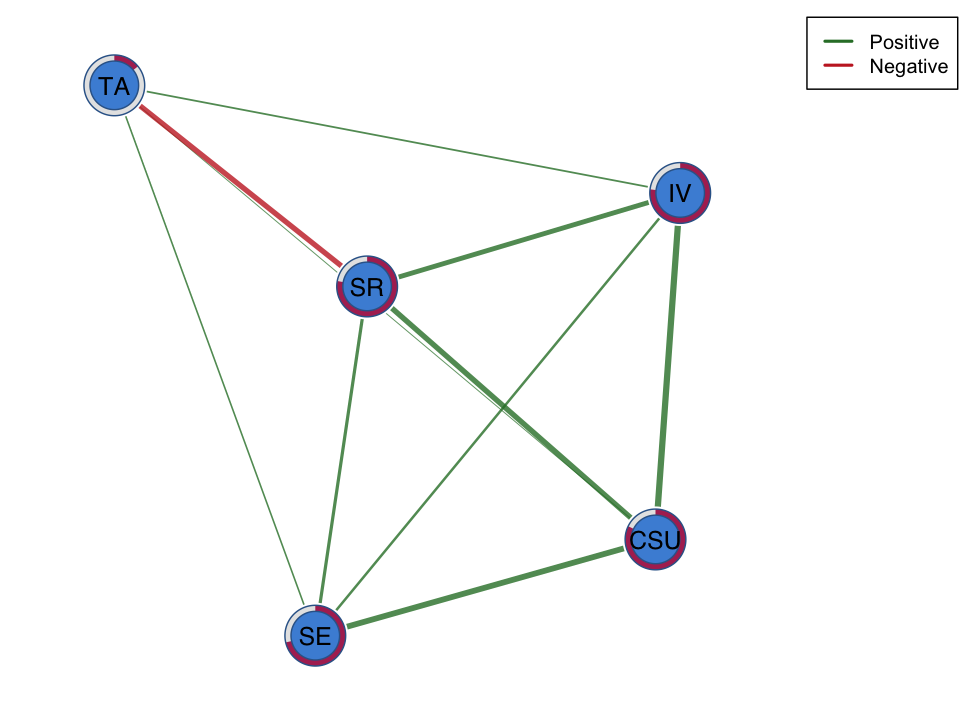

The network is drawn through cograph::splot():

cograph::splot(net, layout = "spring", edge_labels = FALSE, legend = TRUE)

SRL_GPT regulation network

The certificate is available directly, so the distance of the fit from the unique optimum of its objective can be read without an external reference:

glasso_kkt(net$precision, net$cor_matrix, net$lambda)
#> [1] 2.213367e-10

Models and methods

The estimators, each fitted in base R and — where regularized — self-certified:

Verb Model Data
cor_network() correlation network (with significance thresholding) continuous
pcor_network() partial-correlation network continuous
ebic_glasso() EBIC-regularized Gaussian graphical model (graphical lasso) continuous
huge_network() nonparanormal Gaussian graphical model continuous
ggm_modselect() unregularized stepwise Gaussian graphical model continuous
tmfg_network() Triangulated Maximally Filtered Graph continuous
logo_network() Local–Global sparse inverse covariance continuous
relimp_network() relative-importance network (LMG / Shapley) continuous
ising_fit() Ising model, L1-penalized binary
ising_sampler() Ising model, unregularized binary
mgm_fit() mixed graphical model Gaussian + binary
psychnet() unified front door routing all of the above —

The framework verbs operate on any fitted network, and on event logs and grouped data through psychnet():

Verb Purpose
net_centralities(), net_bridge(), net_edge_betweenness() node, bridge, and edge centrality
net_clustering(), net_smallworld() weighted clustering coefficients and the small-world index
net_predict() node predictability (variance explained; classification accuracy)
net_boot(), difference_test() bootstrapped accuracy and within-network difference tests
net_stability(), casedrop_reliability(), network_reliability() case-dropping stability and split-half reliability
net_compare() the permutation Network Comparison Test
redundancy(), net_aggregate() redundant-node detection and community aggregation

psychnet() additionally constructs networks directly from event logs — one row per action — computing action frequencies and separating within- from between-actor variation, and estimates a separate network per group on request. Every fitted network inherits the cograph plotting classes, and each result object carries a base-graphics plot() method.

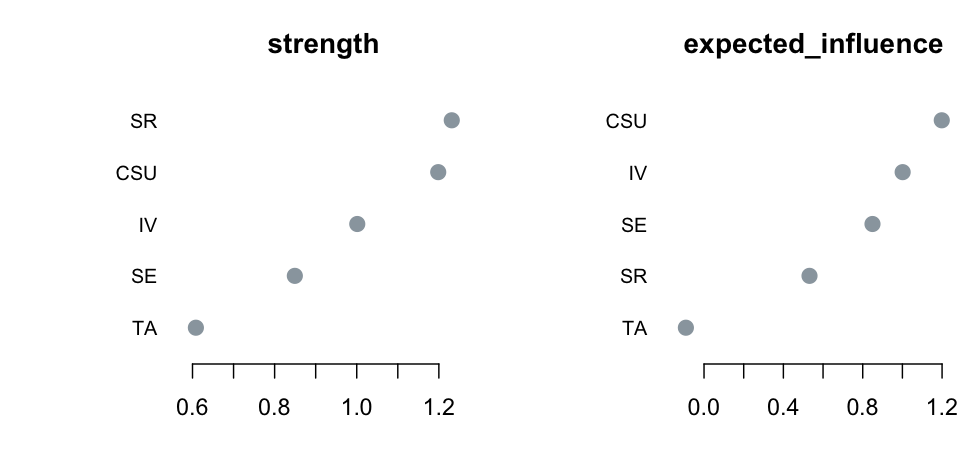

Node centrality plots directly from its result object:

node centrality

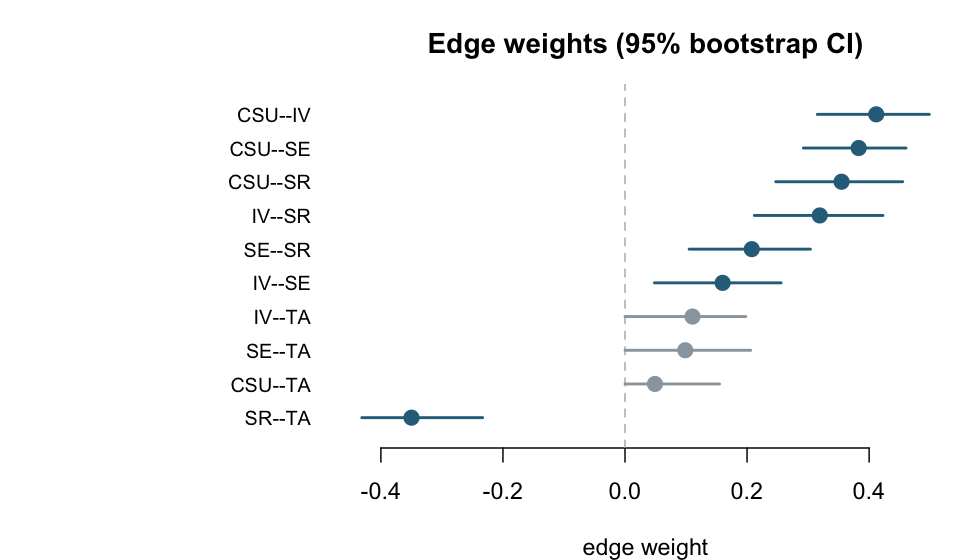

net_boot() resamples the data, re-estimates, and returns bootstrapped edge-weight confidence intervals; edges whose interval excludes zero are drawn in the accent colour:

set.seed(1)
plot(net_boot(SRL_GPT, method = "glasso", n_boot = 500), type = "edges")

bootstrapped edge weights

Self-certification

psychnets treats correctness as a measured quantity rather than as agreement with a second implementation. For a Gaussian graphical model, glasso_kkt() returns the stationarity residual of the graphical-lasso objective; because that objective is strictly convex its minimizer is unique, so a near-zero residual certifies the global optimum with no reference solver involved. The nodewise Ising and mixed graphical models are certified analogously through the penalized-likelihood score residual. External packages (qgraph, IsingFit, mgm, bootnet) serve as cross-checks at independent-solver precision, never as the definition of correct.

Validation

psychnets is checked against the established reference packages in two ways, both reproducible from a fixed set of package versions.

Estimator equivalence versus the reference packages

Each model is fitted by psychnets and by the package that implements it on the same data; equivalence is understood as the same model, each solved to its own optimum — the edge set is identical and the residual difference is at solver precision, while the psychnets KKT residual certifies its own optimality.

psychnets estimator Reference package Data Observed difference
ebic_glasso() qgraph::EBICglasso 1.9.8 AR(1) chain, n = 1000, p = 8 edge set identical; max |Δ| = 2.2e-06; KKT = 1.5e-10
ising_fit() IsingFit::IsingFit 0.4 AR(1) latent, n = 2000, p = 6, binarized edge set identical; max |Δ| = 4.6e-03; threshold r = 1.000
mgm_fit() mgm::mgm 1.2.15 mixed Gaussian + binary, n = 3000, p = 4 edge set identical; max |Δ| = 1.6e-03; KKT = 1.1e-09
cor_auto() psych::polychoric / qgraph::cor_auto four-level Likert, n = 1000, p = 4 max |Δ| = 2.0e-05 (psych), 1.7e-07 (qgraph)
.pbivnorm() (bivariate normal CDF) mvtnorm::pmvnorm 1.2 five (h, k, ρ) points max |Δ| = 5.6e-17

Validation databases (published instruments)

On real questionnaire and ability data the psychnets EBIC graphical lasso reproduces the qgraph edge set exactly — structure agreement equals 1 on every instrument, with a largest edge-weight difference of 0.008 — and the Ising model matches IsingFit on binary batteries. The instruments, all loaded from installed CRAN packages so the comparison downloads nothing:

Instrument Source Items n Reference max |Δ|
qgraph::big5 Dolan, Oort, Stoel & Wicherts (2009) 240 500 qgraph 3.6e-05
psych::bfi Revelle, Wilt & Rosenthal (2010) 25 2760 qgraph 3e-06
psych::sat.act Revelle (psych) 6 700 qgraph 2e-06
psychTools::msq Revelle & Anderson (1998) 50 3876 qgraph 1.2e-05
psychTools::epi.bfi Eysenck & Eysenck (1964) 13 231 qgraph 8.0e-03
psychTools::epi Eysenck Personality Inventory 50 3476 qgraph 6e-06
psychTools::sai Spielberger State Anxiety 22 5282 qgraph 3.5e-05
psychTools::tai Spielberger Trait Anxiety 21 3016 qgraph 7e-06
psychTools::spi Condon (2018), SAPA Inventory 50 4000 qgraph 1.6e-05
psychTools::blot Bond’s Logical Operations Test 35 150 qgraph 0
mgm::Fried2015 Fried et al. (2015) 11 515 qgraph 8e-06
mgm::PTSD_data McNally et al. (2015) 6 344 qgraph 1.9e-05
mgm::B5MS Haslbeck & Waldorp (mgm) 5 500 qgraph 0
mgm::symptom_data Haslbeck & Waldorp (mgm) 48 1476 qgraph 1.5e-05
NetworkToolbox::neoOpen Christensen, Cotter & Silvia (2019) 48 802 qgraph 4e-06
networktools::depression Jones (networktools) 9 1000 qgraph 6.5e-05
networktools::social Jones (networktools) 16 350 qgraph 7e-06
EGAnet::optimism Golino & Christensen (EGAnet) 10 272 qgraph 6e-06
EGAnet::intelligenceBattery Golino & Christensen (EGAnet) 50 1152 qgraph 2.2e-05
psychTools::ability Revelle; ICAR ability items 16 1248 IsingFit 5.9e-02
psychTools::iqitems Condon & Revelle; ICAR 11 1523 IsingFit 1.2e-02

Where the truth is known — data drawn from a known sparse precision matrix — the psychnets and qgraph estimators recover the generating structure at the same F-measure. The full derivation, the worked graphical-lasso case, and the complete tables are given in the package’s technical report.
