Sequential Distribution Plot — sequential

Like survey_sequence but uses a sequential (monochrome) palette instead of diverging colors. Suitable for ordinal scales without a natural midpoint (e.g., "Never" to "Always").

Usage

sequential_dist(
  counts,
  labels = NULL,
  levels = NULL,
  hue = 210,
  band_height = 28,
  band_gap = 14,
  plot_width = 500,
  colors = NULL,
  show_percent = TRUE,
  min_segment = 34,
  arc_style = c("gradient", "neutral"),
  arc_opacity = 0.85,
  sort_by = c("none", "mean", "net"),
  shadow = TRUE,
  show_legend = TRUE,
  label_color = "#333333",
  label_size = 0.85,
  label_align = "left",
  reverse_rtl = FALSE,
  start_from = c("left", "right"),
  flow = c("snake", "natural"),
  title = NULL,
  margin = c(top = 30, right = 10, bottom = 55, left = 100),
  background = "white"
)

Arguments

counts: Numeric matrix of response counts (rows=items, cols=levels).
labels: Character vector of item labels.
levels: Character vector of level labels.
hue: Numeric 0-360. Base hue for the sequential palette (default 210 = blue).
band_height: Numeric (default 28).
band_gap: Numeric (default 14).
plot_width: Numeric (default 500).
colors: Character vector of segment colors. Default: diverging palette.
show_percent: Logical. Show percentages inside segments (default TRUE).
min_segment: Numeric. Hide label if segment narrower than this (default 34).
arc_style: Character: "gradient" or "neutral" (default "gradient").
arc_opacity: Numeric 0-1 (default 0.5).
sort_by: Character: "none", "mean", "net" (default "none").
shadow: Logical (default TRUE).
show_legend: Logical (default TRUE).
label_color: Character (default "#333333").
label_size: Numeric (default 0.85).
label_align: Character. Label alignment: "left" (default), "right", or "direction" (follows band reading direction).
reverse_rtl: Logical. Reverse segment order on right-to-left bands so the visual reading direction mirrors the data order (default FALSE).
start_from: Character: "left" (default) or "right". Which side the first band starts from.
flow: Character, "snake" (default) or "natural". "snake" uses alternating boustrophedon direction; "natural" reads all bands in the same direction.
title: Optional title.
margin: Named numeric vector.
background: Background color.

Value

Invisible snake_layout object.

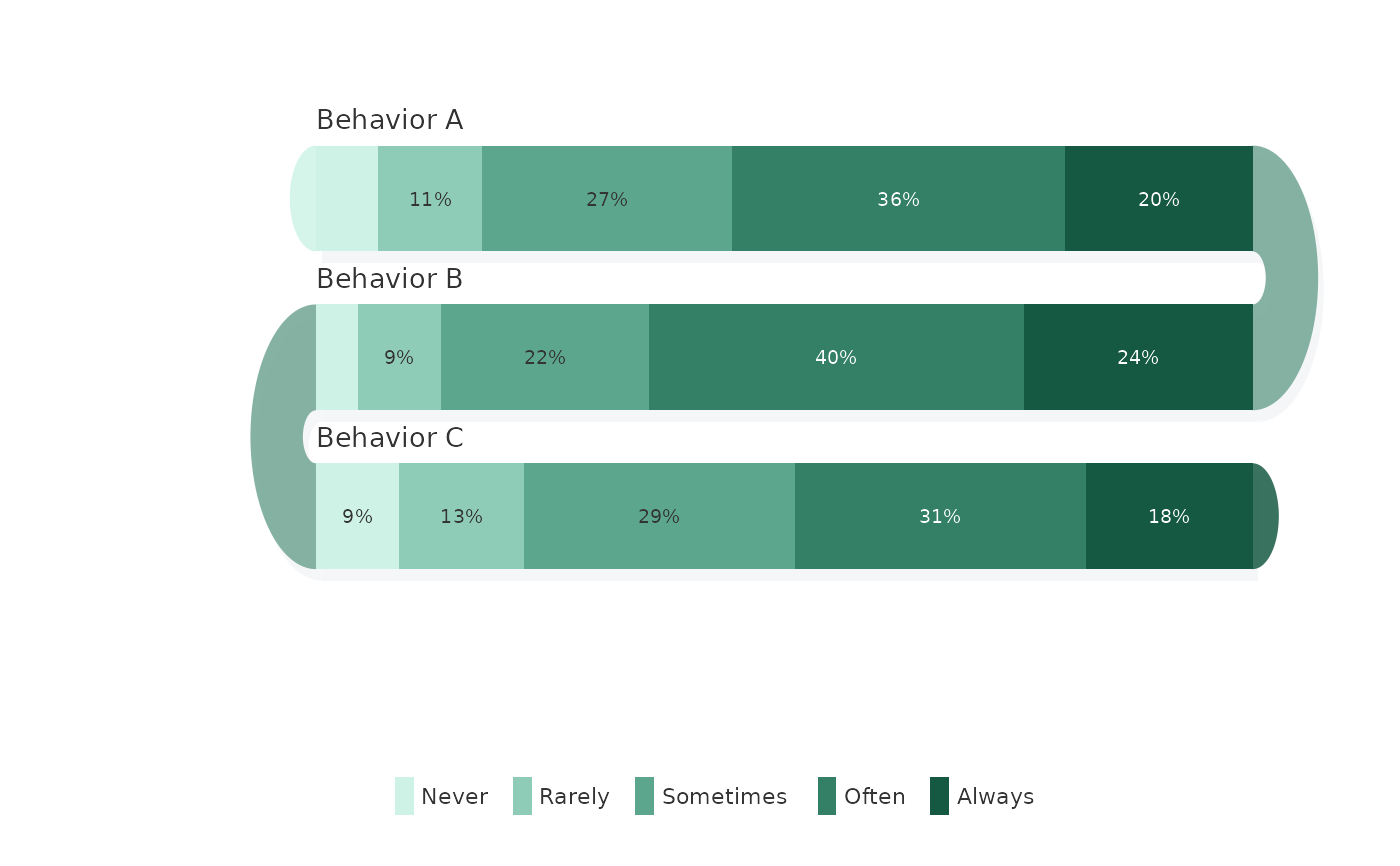

Examples

counts <- matrix(c(
  15, 25, 60, 80, 45,
  10, 20, 50, 90, 55,
  20, 30, 65, 70, 40
), nrow = 3, byrow = TRUE)
labels <- c("Behavior A", "Behavior B", "Behavior C")
levs <- c("Never", "Rarely", "Sometimes", "Often", "Always")
sequential_dist(counts, labels, levs, hue = 160)
