Survey Snake Plot — survey_snake • snakeplot

Each survey item is a horizontal band in a serpentine layout. The band body is shaded by item mean (warm = low, cool = high). Individual responses are shown as colored tick marks. Inter-item correlations appear at U-turns.

Usage

survey_snake(
  counts,
  labels = NULL,
  levels = NULL,
  var = NULL,
  day = NULL,
  timestamp = NULL,
  level_labels = NULL,
  band_height = 28,
  band_gap = 18,
  plot_width = 500,
  tick_shape = c("line", "dot", "bar"),
  bar_reverse = FALSE,
  tick_opacity = 0.75,
  level_gap = 15,
  color_mode = c("level", "individual"),
  colors = NULL,
  shade_band = TRUE,
  show_mean = TRUE,
  show_median = FALSE,
  show_correlation = TRUE,
  jitter_range = 0.22,
  sort_by = c("none", "mean", "net"),
  shadow = TRUE,
  label_color = "#333333",
  label_size = 0.85,
  label_align = "left",
  show_legend = TRUE,
  legend_text_size = 0.65,
  arc_color = "#2c3e6b",
  arc_opacity = 0.8,
  arc_fill = c("none", "correlation", "mean_prev", "blend"),
  band_palette = NULL,
  start_from = c("left", "right"),
  flow = c("snake", "natural"),
  facet = FALSE,
  facet_ncol = 2L,
  title = NULL,
  margin = c(top = 30, right = 10, bottom = 55, left = 100),
  background = "white",
  seed = 42L
)

Arguments

counts

Input in one of four formats:

Raw responses (data.frame) — each column is a survey item, each row is a respondent. Responses are auto-tabulated into counts. labels and levels are inferred from column names and unique values. Simplest usage: survey_snake(survey_df).

Counts matrix — rows = items, columns = response levels.

Counts data.frame — coerced to matrix.

ESM / longitudinal data.frame — when var and timestamp are provided, data is automatically pivoted by day. Each band becomes one day. Ticks are positioned by time-of-day.

labels

Character vector of item labels (length = nrow(counts)).

levels

Character vector of level labels (length = ncol(counts)).

var

Character, column name of the response variable for ESM mode. When provided with day, data is auto-pivoted by period.

day

Character, column name for the day/period grouping variable (e.g. "day"). Each unique value becomes one band.

timestamp

Character, column name of a POSIXct timestamp for ESM mode. When provided alongside var and day, ticks are positioned by time-of-day within each band.

level_labels

Optional named character vector mapping raw level values to display labels (e.g. c("1"="Str. Disagree", "5"="Str. Agree")). Applied to legend and any level-based text. If unnamed and same length as levels, used positionally.

band_height

Numeric (default 28).

band_gap

Numeric (default 18).

plot_width

Numeric (default 500).

tick_shape

Character: "line" (default), "dot", or "bar" (stacked proportional bars with percentage labels).

bar_reverse

Logical. When TRUE and tick_shape = "bar", draw segments from the highest level (left) to the lowest (right). Default FALSE.

tick_opacity

Numeric 0-1 (default 0.55).

level_gap

Numeric. Gap between response-level zones in plot units (default 15). Set to 0 for no separation.

color_mode

Character, "level" (color by response level) or "individual" (unique hue per respondent). Default "level".

colors

Character vector of colors for response levels. Default uses a diverging palette.

shade_band

Logical. Shade band body by item mean (default TRUE).

show_mean

Logical. Diamond marker at mean (default TRUE).

show_median

Logical. Vertical line at median (default FALSE).

show_correlation

Logical. Show Pearson r at U-turns (default TRUE).

jitter_range

Numeric. Vertical jitter fraction (default 0.22).

sort_by

Character: "none", "mean", or "net" (default "none").

shadow

Logical (default TRUE).

label_color

Character (default "#333333").

label_size

Numeric (default 0.85).

label_align

Character. Label alignment: "left" (default), "right", or "direction" (follows band reading direction).

show_legend

Logical (default TRUE).

legend_text_size

Numeric, legend text size (default 0.65).

arc_color

Character (default "#2c3e6b").

arc_opacity

Numeric (default 0.80).

arc_fill

Character controlling arc fill style:

"none": (default) Two-tone split: upper half colored by the upper band's mean shade, lower half by the lower band's mean shade.
"correlation": Brown/blue tint by correlation sign, opacity scaled by |r|. The original behavior.
"mean_prev": Solid fill using the upper (preceding) band's mean shade.
"blend": Solid fill: 50/50 RGB average of adjacent band shades.

band_palette

Character vector of 2+ anchor colors for the band shading gradient. Low item means map to the first color, high means to the last. Default NULL uses the built-in brown-to-slate ramp. For darker plots try c("#1a1228", "#1a2a42").

start_from

Character: "left" (default) or "right". Which side the first band starts from.

flow

Character, "snake" (default) or "natural". "snake" uses alternating boustrophedon direction; "natural" reads all bands in the same direction.

facet

Logical or named list. When TRUE, columns are auto-grouped by their name prefix (e.g. LOC1-LOC5 → "LOC") and each group is drawn as a facet panel. A named list of column-name vectors gives explicit grouping. Default FALSE.

facet_ncol

Integer, number of columns in the facet grid (default 2).

title

Optional plot title.

margin

Named numeric vector.

background

Background color.

seed

Integer for reproducible jitter (default 42).

Value

Invisible snake_layout object (or list of layouts when faceted).

Examples

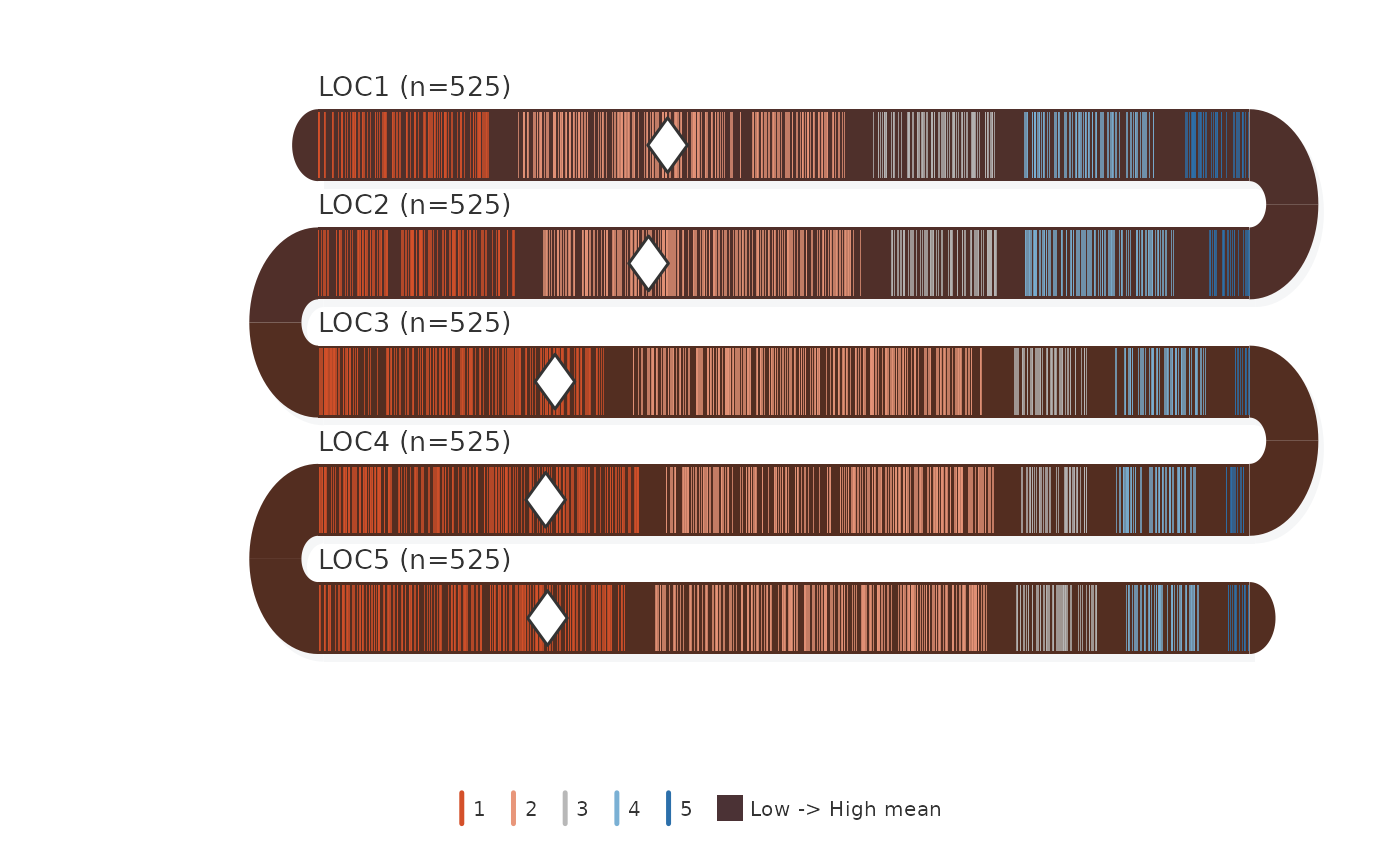

counts <- matrix(c(
  110, 210, 79, 84, 42,
  126, 205, 68, 100, 26,
  184, 226, 47, 58, 10,
  205, 210, 42, 53, 15,
  197, 214, 53, 47, 14
), nrow = 5, byrow = TRUE)
labels <- paste0("LOC", 1:5, " (n=525)")
levs <- as.character(1:5)
survey_snake(counts, labels, levs)
