Plot a hypergraph with hyperedges as pebbles — plot.net

Draws every hyperedge as a smooth pebble around its members – the convex hull of the members, widened by padding and with its corners smoothed away – in a translucent fill parted from its neighbours by a white seam. Every member is guaranteed to lie inside its pebble. The default layout places the bipartite star expansion (nodes and hyperedges together), which gives each hyperedge a position of its own among its members; hulls fan out instead of piling onto shared nodes, and hyperedge labels sit at those positions. Hulls can be coloured by hyperedge size, by a column of the edge metadata, or by any value supplied per hyperedge, and outlined with a line type by the same kinds of selector. A hyperedge with a single member is drawn as its node alone.

Usage

# S3 method for class 'net_hg'
plot(
  x,
  layout = c("bipartite", "spring", "circle"),
  center = NULL,
  seed = 1L,
  color_by = NULL,
  linetype_by = NULL,
  labels = TRUE,
  label_size = NULL,
  edge_labels = FALSE,
  edge_label_size = 3,
  dismantled = FALSE,
  ncol = NULL,
  node_size = 2.5,
  detail = 5,
  outline = "white",
  alpha = 0.5,
  linewidth = 1.1,
  padding = 0.045,
  legend_title = NULL,
  node_sizes = NULL,
  direction = NULL,
  arrow_style = c("inside", "outside"),
  node_fill = "#000000",
  arrow_fill = NULL,
  transitions = NULL,
  size_title = NULL,
  titles = NULL,
  title_prefix = "",
  notes = NULL,
  unit = NULL,
  pieces = NULL,
  title_gap = 0.06,
  group = NULL,
  node_groups = NULL,
  type = c("hulls", "incidence", "storyline"),
  sort_by = NULL,
  ...
)

Arguments

x: A net_hg with at least one hyperedge of two or more members. Draw a part of a large hypergraph by passing hg_subset() first.
layout: "bipartite" (default; a Fruchterman-Reingold layout of the star expansion, nodes and hyperedges placed together), "spring" (the same on the clique projection), "circle", or a data.frame with node, x and y columns to reuse node coordinates across panels (hyperedges then sit at the centroid of their members). The two force-directed layouts place each connected component separately and pack the results; a layout table is used exactly as given.
center: Node names to place in the middle of the picture, such as the outcome states every hyperedge ends in. Under "bipartite" and "spring" they are held on a small ring at the centre while the rest of the layout arranges around them; under "circle" they sit inside the ring of the other nodes. Names that are not nodes of this hypergraph are skipped, so one vector can serve several subsets; an error is raised only when none of them is. NULL (default) places every node freely. Not used with a layout table.
seed: Seed for the force-directed layouts (default 1); the caller's random number stream is left untouched.
color_by: Colour of the hulls: NULL (the hyperedges' count attribute described above, the window counts of a window_hypergraph(), else one colour), "size" (hyperedge cardinality, one Okabe-Ito colour per size), "weight" (the hyperedge weights of a window_hypergraph(), the number of windows behind each hyperedge), the name of a column in the edge metadata (x$edge_data), a vector named by hyperedge, or a vector with one value per hyperedge. Character or factor values get the Okabe-Ito palette; numeric values a sequential scale built from it.
linetype_by: Outline line type of the hulls, resolved like color_by; discrete only.
labels: TRUE (default) writes the node names, FALSE writes none, and a character vector named by node replaces the names shown.
label_size: Text size of the node labels, in mm. NULL (default) scales it to the number of labelled nodes n: 4.2 up to 12 labels, then 4.2 * sqrt(12 / n), the side of the area each label can claim, down to a floor of 2.2 (reached at 44 labels). A number is used as given. With type = "incidence" it sizes the row names instead.
edge_labels: Name the hyperedges on the figure. FALSE (default) writes nothing, TRUE writes the hyperedge names, or pass a vector named by hyperedge to write something else. Under the bipartite layout each label sits at the hyperedge's own position; under the projection layouts, just outside the member furthest from the centre, clear of the crowded overlap.
edge_label_size: Text size for edge_labels (default 3), and for the panel titles when dismantled = TRUE. A title is never cut to fit its panel – a clipped hyperedge name reads as a different hyperedge – so lower this, or ncol, if long names collide.
dismantled: Draw one panel per hyperedge instead of one figure with every hull overlaid (default FALSE). All panels share the layout, so positions are comparable; each panel greys out the non-members and is titled with its hyperedge name. edge_labels does not apply.
ncol: Columns in the panel grid when dismantled = TRUE (default: roughly square).
node_size: Point size of the nodes (default 2.5).
detail: How much of the hull's shape the smoothing keeps: the width, in harmonics, of the Gaussian low-pass applied to the outline. The default 5 gives rounded, tapering petals; 3 is rounder still, 8 stays close to the members, and Inf draws the unsmoothed rounded hull.
outline: Outline colour: "white" (default) draws seams that part overlapping hyperedges; "fill" outlines each hyperedge in its own colour (pair it with a lower alpha, e.g. 0.15); any other colour is used as given.
alpha: Fill transparency (default 0.5); the outline is always drawn at full strength.
linewidth: Width of the outlines (default 1.1).
padding: Room around the member positions as a fraction of the layout extent (default 0.045). It also sets how far apart the layout packs disconnected components, so that two components' pebbles never touch and imply a member they do not share.
legend_title: Legend title for color_by; defaults to the selector's name.
node_sizes: Size every node by a value, such as how often the node occurs: a data.frame with a node column and a value column, or a numeric vector named by node. The columns are node and value when those names are present; otherwise the one character (or factor) column holds the node names and the one numeric column the values, so a table such as data.frame(state, trials) is read as it is. Every node of the hypergraph needs a non-negative value; names that are not nodes are skipped, so one table serves every hg_subset(). Without direction the nodes are points whose area follows the value (ggplot2::scale_size_area(), largest 10 mm), with a size legend, and each label sits just above its dot. With direction they are circles in data units (the figure has a fixed 1:1 aspect): the largest has a radius of 4% of the layout extent and none is smaller than 30% of that radius, so the rarest nodes stay visible, and a caption says what area and triangle show. NULL (default) draws plain points.
direction: Mark on each circle where the walk goes next: a data.frame with columns from, to and a weight – weight, or else the one other numeric column, such as trials (how often to follows from; repeated pairs are summed). Each node gets a triangle pointing at the other node that follows it with the largest weight, ties broken by node name; a node that nothing else follows (a sink, or only itself) gets no triangle. Rows naming a node that is not in the hypergraph are skipped. Requires node_sizes.
arrow_style: "inside" (default; a triangle inscribed in the circle, its apex on the rim facing the next node) or "outside" (the circle drawn out into a tip beyond its rim). An outside tip that points upward moves that node's label below the circle.
node_fill: Colour of the circles drawn by node_sizes with direction (default black).
arrow_fill: Colour of the direction triangles. NULL (default) is a dark slate ("#1F3A44") for "inside" and node_fill for "outside".
transitions: Draw the moves between nodes as curved arrows: a data.frame with from, to and a weight, read like direction. Line width follows the weight; a node followed by itself gets a small loop below it. Rows naming a node that is not in the hypergraph are skipped. The width legend is titled with the capitalised unit followed by "making the transition" when unit is given, and "Transition weight" otherwise.
size_title: What the node area shows (e.g. "trials with the event"): the caption reads "Circle area: " followed by it and the point size legend is titled with it. NULL (default) uses the unit followed by "with the event" when there is a unit, and otherwise says the area is proportional to the event value.
titles: Write a title box beside every hyperedge, just outside its pebble on the side facing away from the centre of the figure. NULL (default) writes the hyperedges' count attribute described above (not when dismantled = TRUE), else none; FALSE writes none; TRUE writes the hyperedge names; a selector resolved like color_by (an edge-metadata column, a vector named by hyperedge, or one value per hyperedge) must be numeric and adds a second line with that number and unit (e.g. "3,667 trials"). A hyperedge with a single member gets its box beside that node. Boxes are placed in order of decreasing value (name breaks ties) and a box that would sit on an earlier one moves below it.
title_prefix: Text written before each hyperedge name in its title box (default ""), such as "Mostly ".
notes: A further line for some title boxes: a character vector named by hyperedge, or a data.frame with a note column and the hyperedge names in a hyperedge, edge or group column. Hyperedges without a note get none; names that are not hyperedges are skipped. Requires titles.
unit: The word for what the values count (e.g. "trials", "steps"). It titles the color_by legend (capitalised, unless legend_title is given), follows the number in each title box, and names the node area ("trials with the event") and the transition widths. NULL (default) is the unit the hypergraph records ("sequences" for group_hypergraph() of a clustering), else the name of the hyperedges' count attribute described above, else those texts stay generic.
pieces: How the bipartite layout places a hypergraph that falls into disconnected pieces: "packed" (default; pieces are laid out one by one and packed into a square frame, so each takes room in proportion to its size) or "row" (every piece is laid out in a frame of its own, as if drawn alone, and the frames are set side by side 1.4 frame widths apart, in order of the piece's most prominent hyperedge – see titles – with a piece of one node at the middle of its frame). Only the bipartite layout has pieces; "row" given with another layout is an error.
title_gap: Distance of each title box beyond its pebble, in layout units (the layout spans 0 to 1; default 0.06).
group: Draw one group only: the name of a value of the hyperedges' group attribute (a hypergraph of counted sets with a single group is drawn as that group without it), such as "Cluster 1" of a group_hypergraph() built from a clustering of sequences. Only that group's hyperedges and their members are drawn; for clustered sequences each node is sized by the sequences of the group containing it (unless node_sizes is given), each set is named by the states it adds to those every drawn set shares (listed in the subtitle), the figure is titled with the group and its number of sequences, titles defaults to FALSE and the legends are stacked. A name that is not a group, or a hypergraph without a group attribute, raises hypergraphs_bad_input. NULL (default) draws every hyperedge.
node_groups: Colour and shape every node by its group, such as its community: an hg_communities(), hg_mmsbm() or hg_topics() fit, a hg_cluster() or hg_classify() result, or a data.frame with a node column and a community, cluster, predicted, topic, block or label column (read as hg_agreement() reads a labeling). Groups take the Okabe-Ito colours in their natural order and a shape each; a node without a group is plotted as a small grey point. Without color_by the hulls are then grey, so the node colours carry the grouping. NULL (default) plots every node alike. Raises hypergraphs_bad_input with node_sizes, direction, transitions, dismantled = TRUE or outline = "fill".
type: "hulls" (default) plots each hyperedge as a pebble around its members; "incidence" plots the incidence matrix; "storyline" plots the hyperedges in order as columns and the nodes as lines (see Details).
sort_by: Column order of type = "incidence": NULL (default; by highest member row, then name), "size", the name of a column in the edge metadata such as a date, a vector named by hyperedge, or a vector with one value per hyperedge. Numbers sort largest first, as in hg_get(); dates, text and a clock column (start, end, time, ... as temporal_hypergraph() names them, numeric in a snapshot) sort ascending. Ties fall back to the default order. For type = "storyline" it is the order of the columns, always ascending; NULL keeps the stored order of the hyperedges.
...: For type = "storyline": top (the number of nodes with the most hyperedges drawn as lines, default 8, NULL for all), spacing ("even" or "strength"), width_by (NULL or "degree") and point_size, as in plot.net_temporal_hypergraph(). Otherwise unused.

Value

A ggplot object (with dismantled = TRUE, one facet per hyperedge). With node_sizes and direction the nodes are polygon layers in data units and the caption names what circle area and triangle show; with node_sizes alone they are points with a size legend. Title boxes are the last layer.

Details

A hypergraph whose hyperedges carry one numeric attribute – such as a trials count that group_hypergraph() kept because it is constant within each group – is drawn by that attribute with no further argument: it colours the pebbles, writes a title box with the count beside each one, and names the unit of the legends. Of several numeric attributes, the one that varies between hyperedges is read when only one does (a membership share of 1 on every hyperedge is passed over); otherwise none is. color_by, titles and unit override it.

Node labels are bold with a white halo, the legends sit below the plot (a colour bar 2.5 cm per key, discrete legends at most four keys to a row) and the plot has wide margins (40, 130, 30 and 130 pt) so title boxes outside the pebbles are not cut. The look of earlier versions is partly available through arguments: alpha = 0.45 and label_size = 3; the legend position and margins through ggplot2::theme() added to the result.

A hypergraph whose hyperedges repeat the same members, such as the trials of an event log, is drawn as its distinct sets: each set once, coloured by its number of copies, with each node sized by the hyperedges that contain it. A call that styles or labels the hyperedges one by one (titles, color_by, linetype_by, edge_labels, notes, dismantled), or groups the nodes (node_groups), draws every hyperedge.

A hypergraph that falls into several disconnected pieces is laid out one piece at a time and the pieces are then packed into a roughly square frame. A force-directed layout has no force at all between two disconnected components – they repel and nothing pulls back – so laying the whole hypergraph out at once lets a stray hyperedge drift to the edge of the picture and set the scale for everything else, leaving the connected structure a speck in the middle. Packing keeps every component at its own size and the frame spent on structure.

type = "storyline" plots a hypergraph whose hyperedges have an order, such as the windows of one sequence from window_hypergraph(collapse = FALSE), as a storyline (Tanahashi and Ma 2012): each hyperedge is a column, in stored order or by sort_by, and each of the busiest nodes a line that its hyperedges gather, laid out as for plot.net_temporal_hypergraph(). It takes sort_by, edge_labels (FALSE drops the column names) and the storyline arguments in ....

type = "incidence" plots the incidence matrix instead, after UpSet (Lex et al. 2014). Each node is a row and each hyperedge a column; a vertical bar joins the members of a hyperedge. Rows are ordered by decreasing hyperdegree, which a bar at the right of each row also shows, and columns by sort_by, then by their highest member row, so hyperedges that share the busiest nodes stand together. A bar above each column shows the hyperedge's size when sizes differ. Empty cells are grey points up to 20,000 cells. Every hyperedge is a column, repeated sets included. The figure grows linearly with the number of hyperedges, so it stays legible where hulls overlap into one shape. It takes color_by (discrete values also get a point shape each), legend_title, labels, edge_labels (the column names), label_size and edge_label_size (row and column text in mm; defaults 8 and 7 pt).

Conditions

hypergraphs_bad_input for an invalid selector or layout, a node_sizes that misses a node or holds a negative value, a direction or transitions table without from, to and one non-negative numeric weight, a direction without node_sizes, titles that are not numeric, notes without titles, an invalid unit, title_prefix or title_gap, pieces = "row" with a layout other than "bipartite", or node overlays or titles combined with dismantled = TRUE; with type = "incidence", any argument of the hull plot other than those listed in Details, and sort_by with type = "hulls".

References

Coupette, C., Hartung, D., & Katz, D. M. (2024). Legal hypergraphs. Philosophical Transactions of the Royal Society A, 382(2270), 20230141. doi:10.1098/rsta.2023.0141

Fruchterman, T. M. J., & Reingold, E. M. (1991). Graph drawing by force-directed placement. Software: Practice and Experience, 21(11), 1129-1164. doi:10.1002/spe.4380211102

Tanahashi, Y., & Ma, K.-L. (2012). Design considerations for optimizing storyline visualizations. IEEE Transactions on Visualization and Computer Graphics, 18(12), 2679-2688. doi:10.1109/TVCG.2012.212

Lex, A., Gehlenborg, N., Strobelt, H., Vuillemot, R., & Pfister, H. (2014). UpSet: Visualization of intersecting sets. IEEE Transactions on Visualization and Computer Graphics, 20(12), 1983-1992. doi:10.1109/TVCG.2014.2346248

Examples

dat <- data.frame(
  member = c("a", "b", "c", "b", "c", "d", "d", "e", "f"),
  event = c("e1", "e1", "e1", "e2", "e2", "e2", "e3", "e3", "e4")
)
hg <- group_hypergraph(dat, "member", "event")

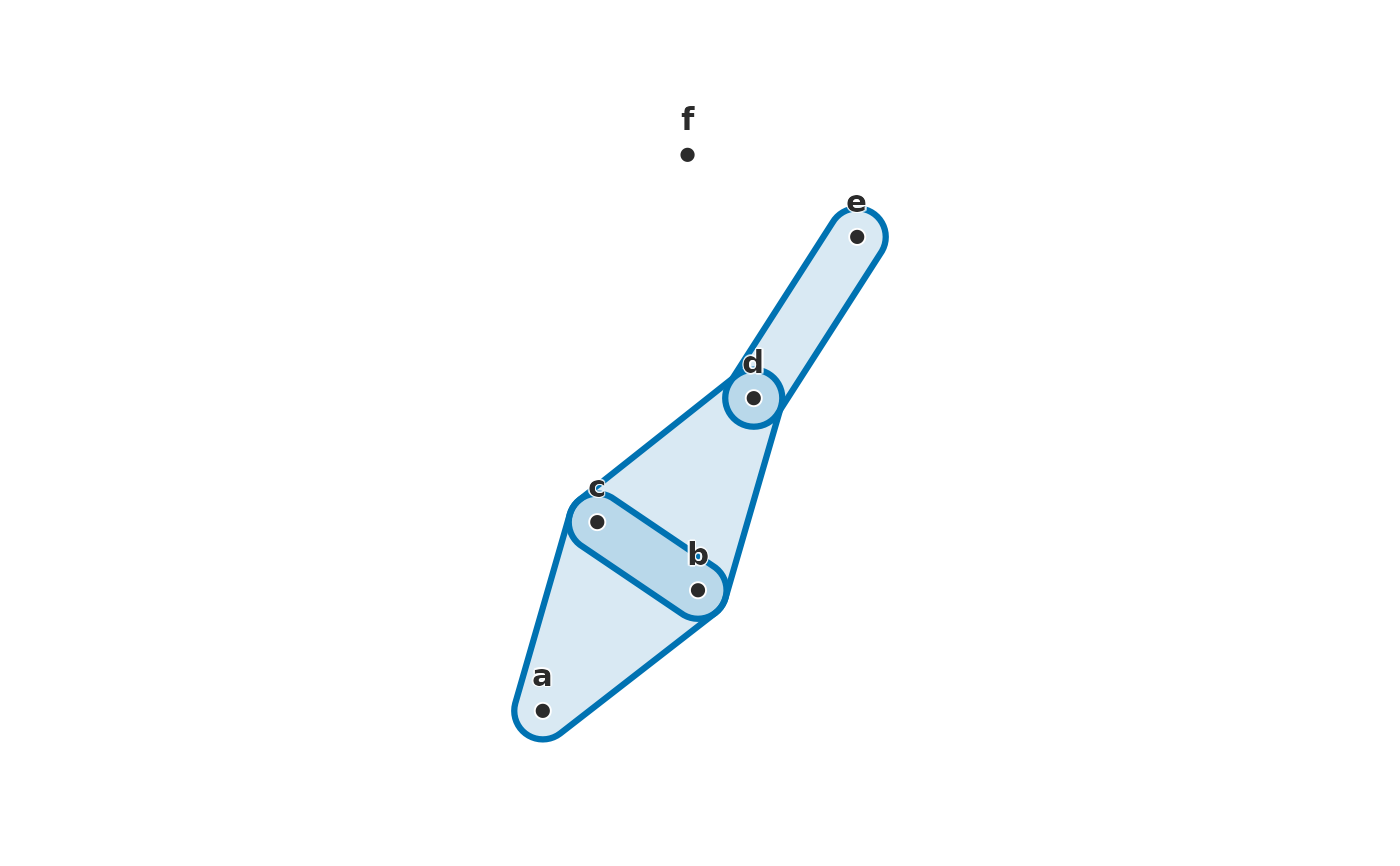

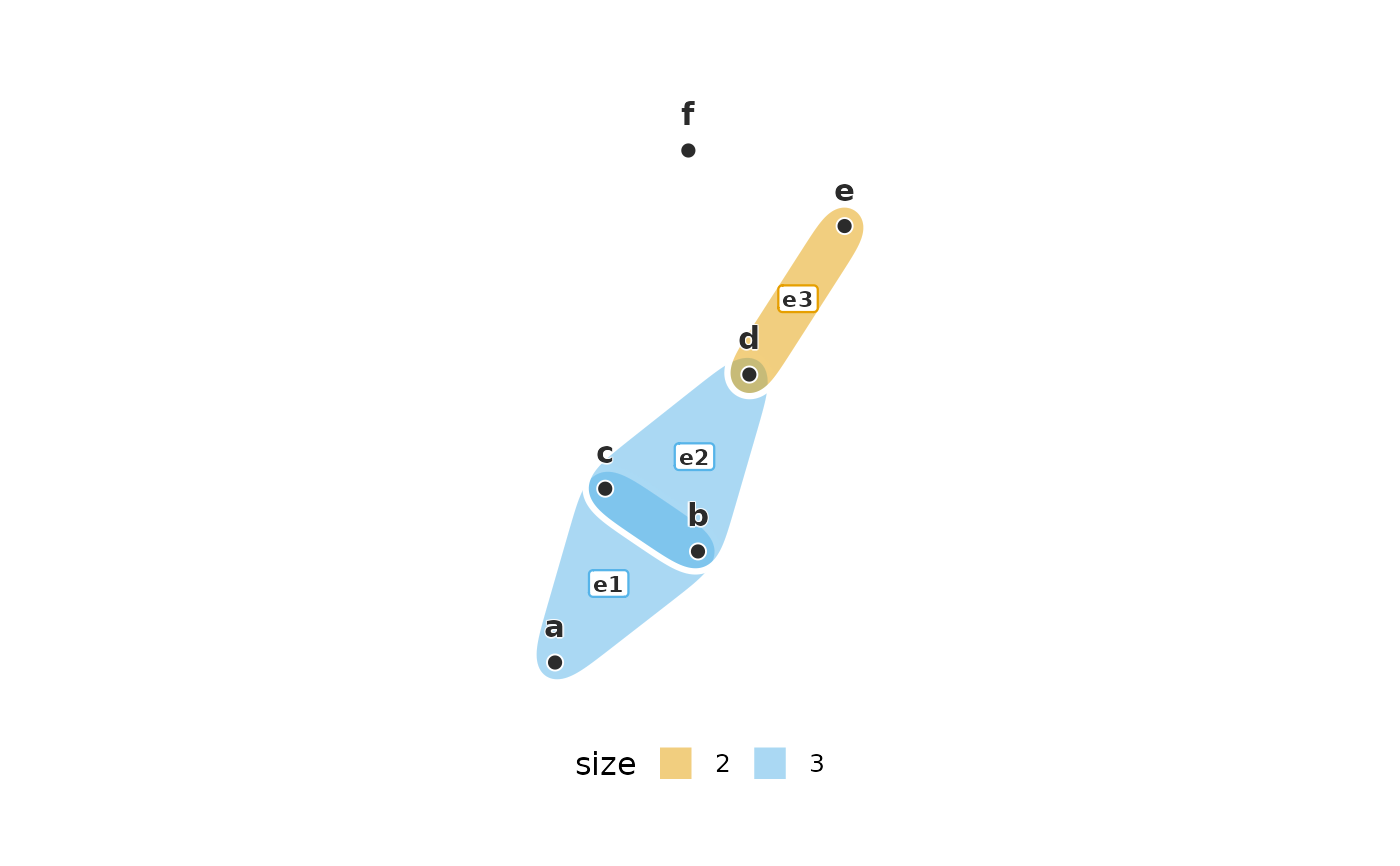

plot(hg, color_by = "size", edge_labels = TRUE)

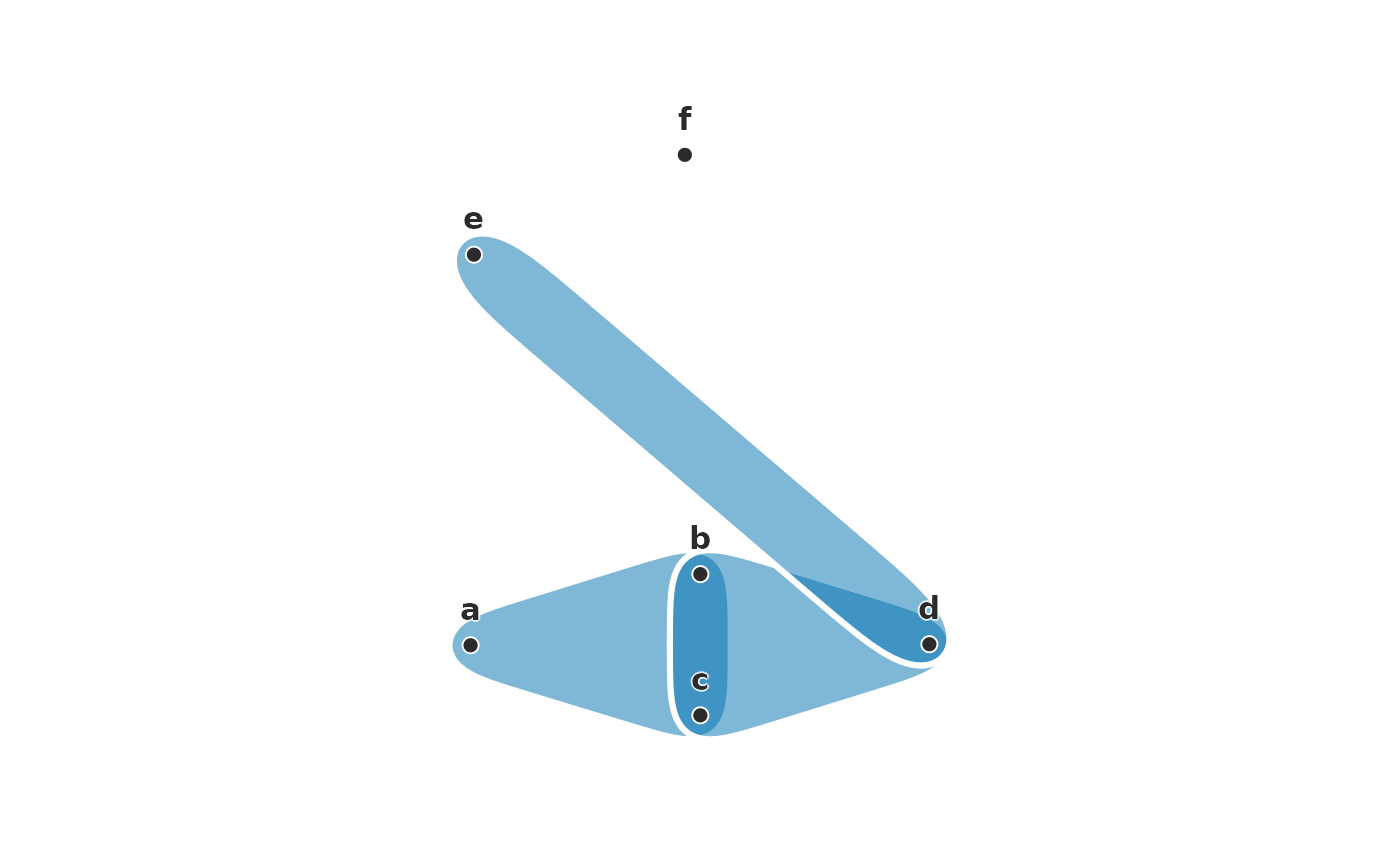

plot(hg, detail = Inf, outline = "fill", alpha = 0.15)

plot(hg, center = c("b", "c"))

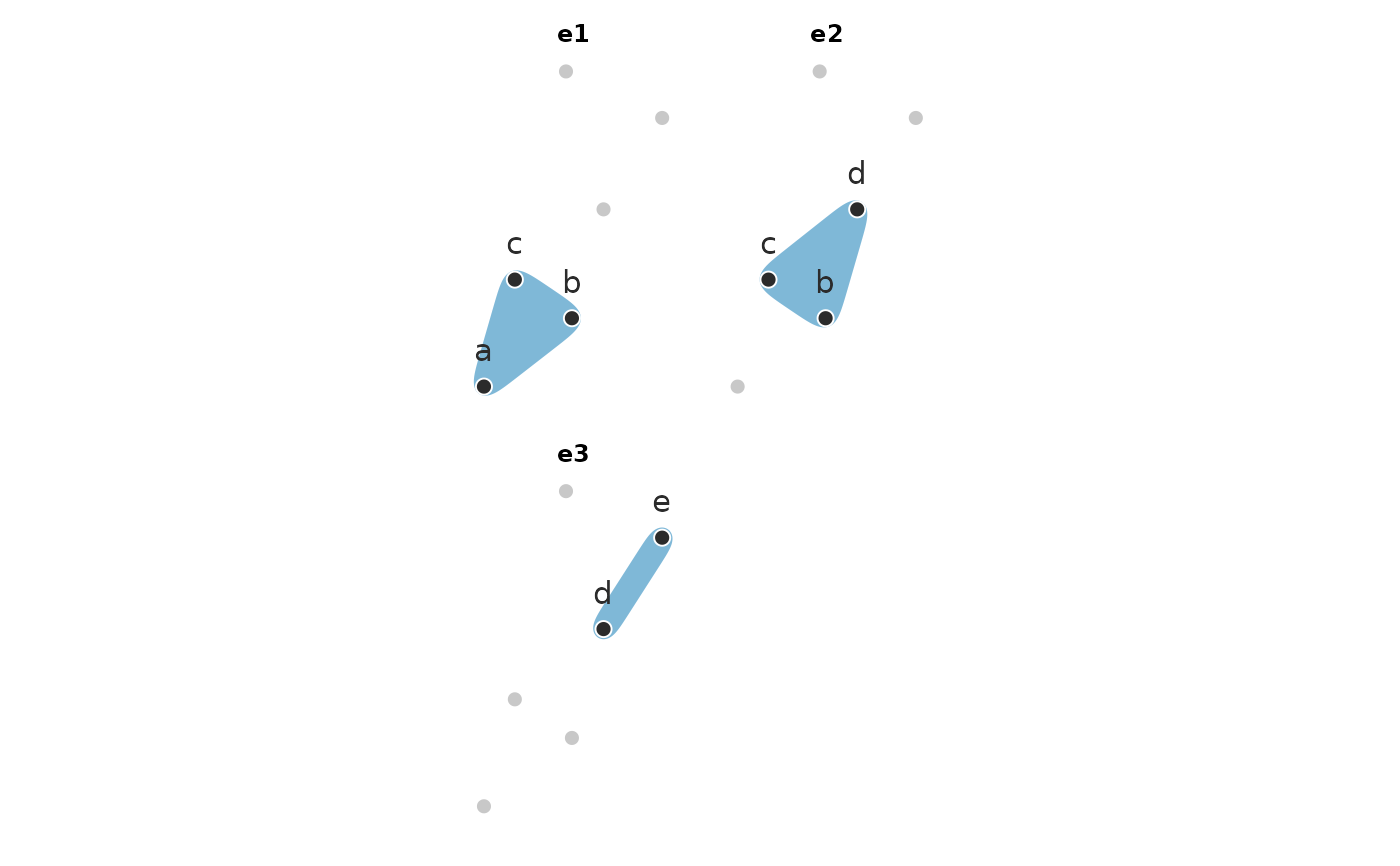

plot(hg, dismantled = TRUE)

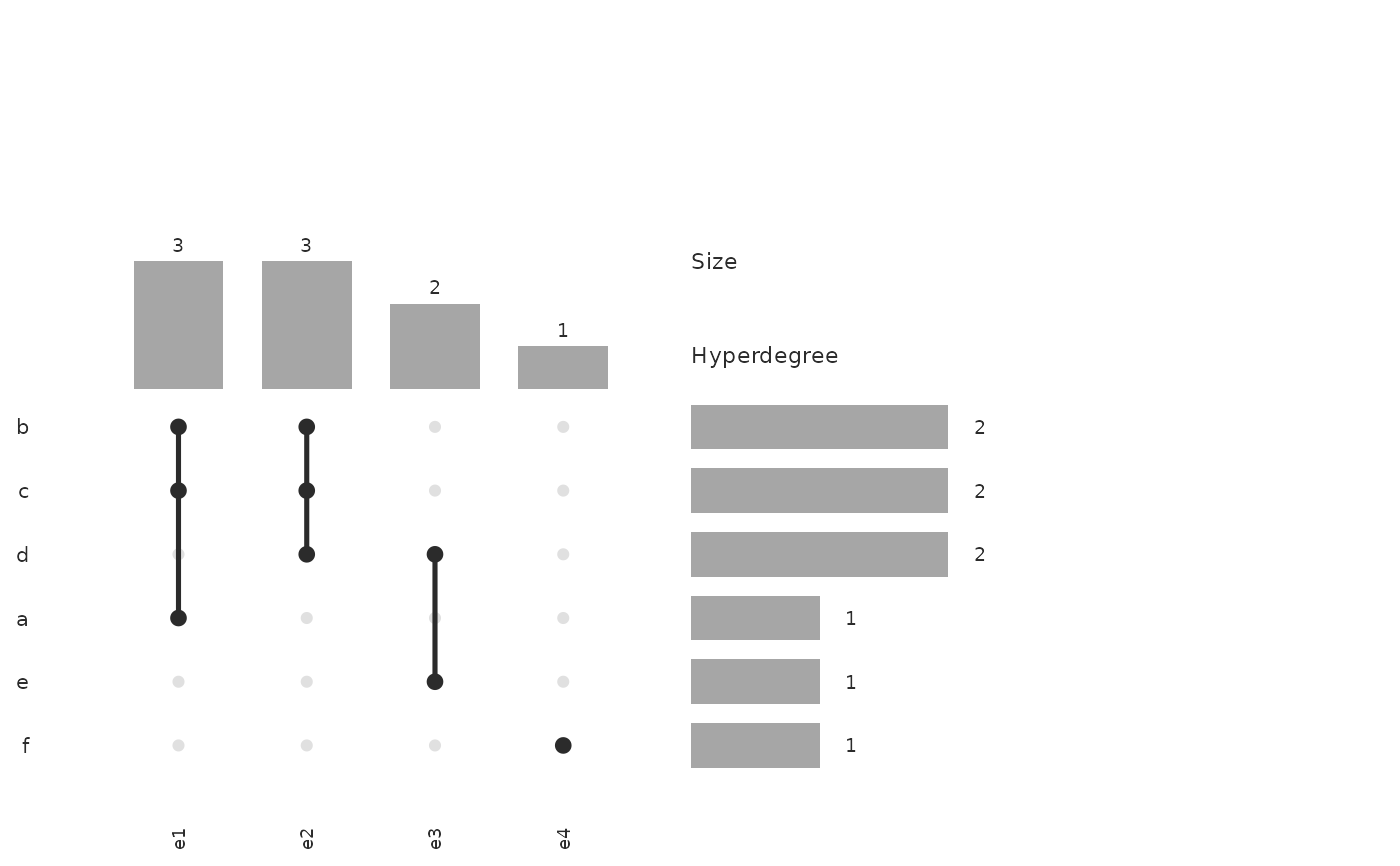

plot(hg, type = "incidence", edge_labels = TRUE)

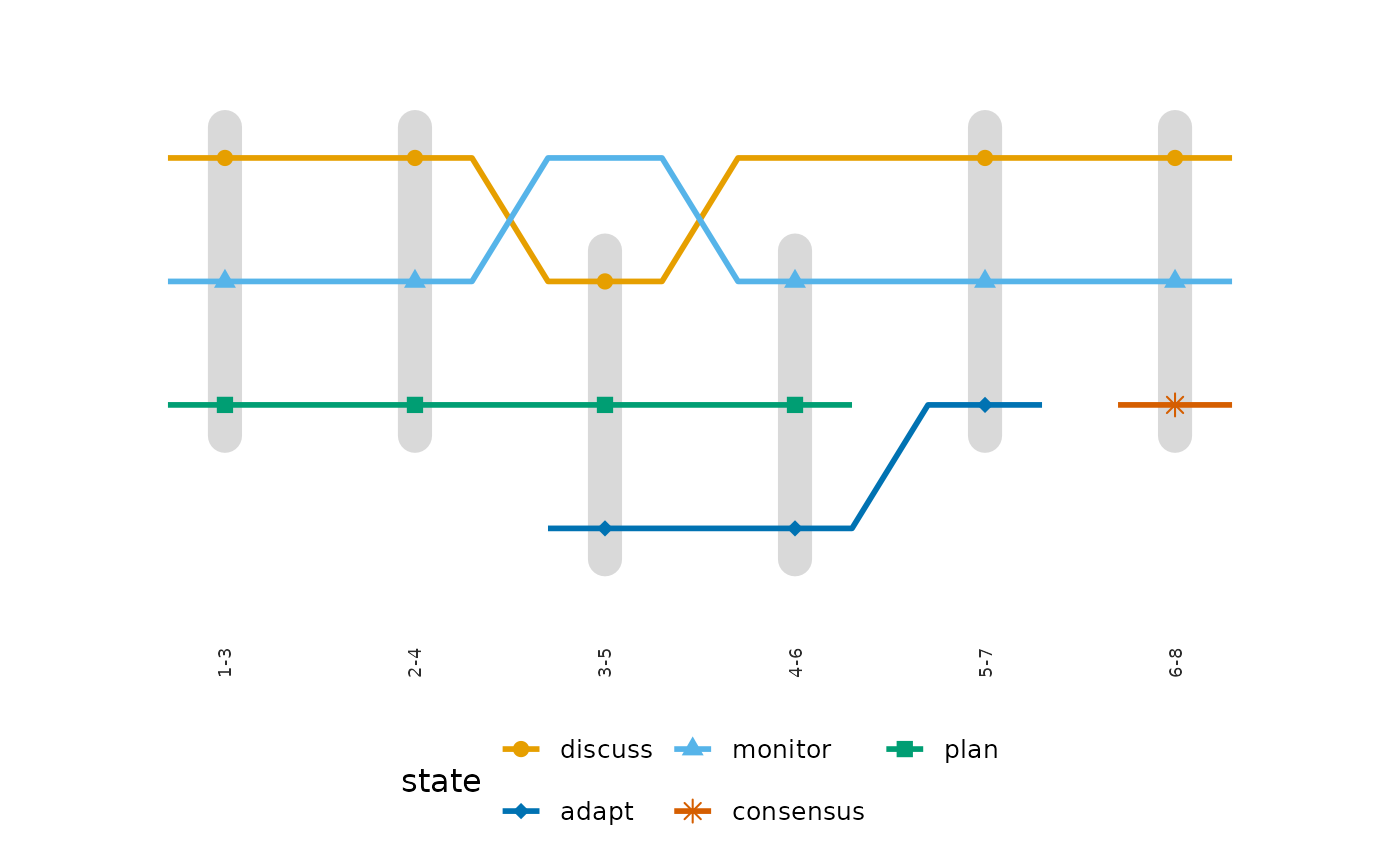

# the windows of one sequence, in order, as a storyline
steps <- list(c("plan", "monitor", "discuss", "plan", "adapt", "monitor",
                "discuss", "consensus"))
windows <- window_hypergraph(steps, window = 3, collapse = FALSE)
plot(windows, type = "storyline", top = NULL)

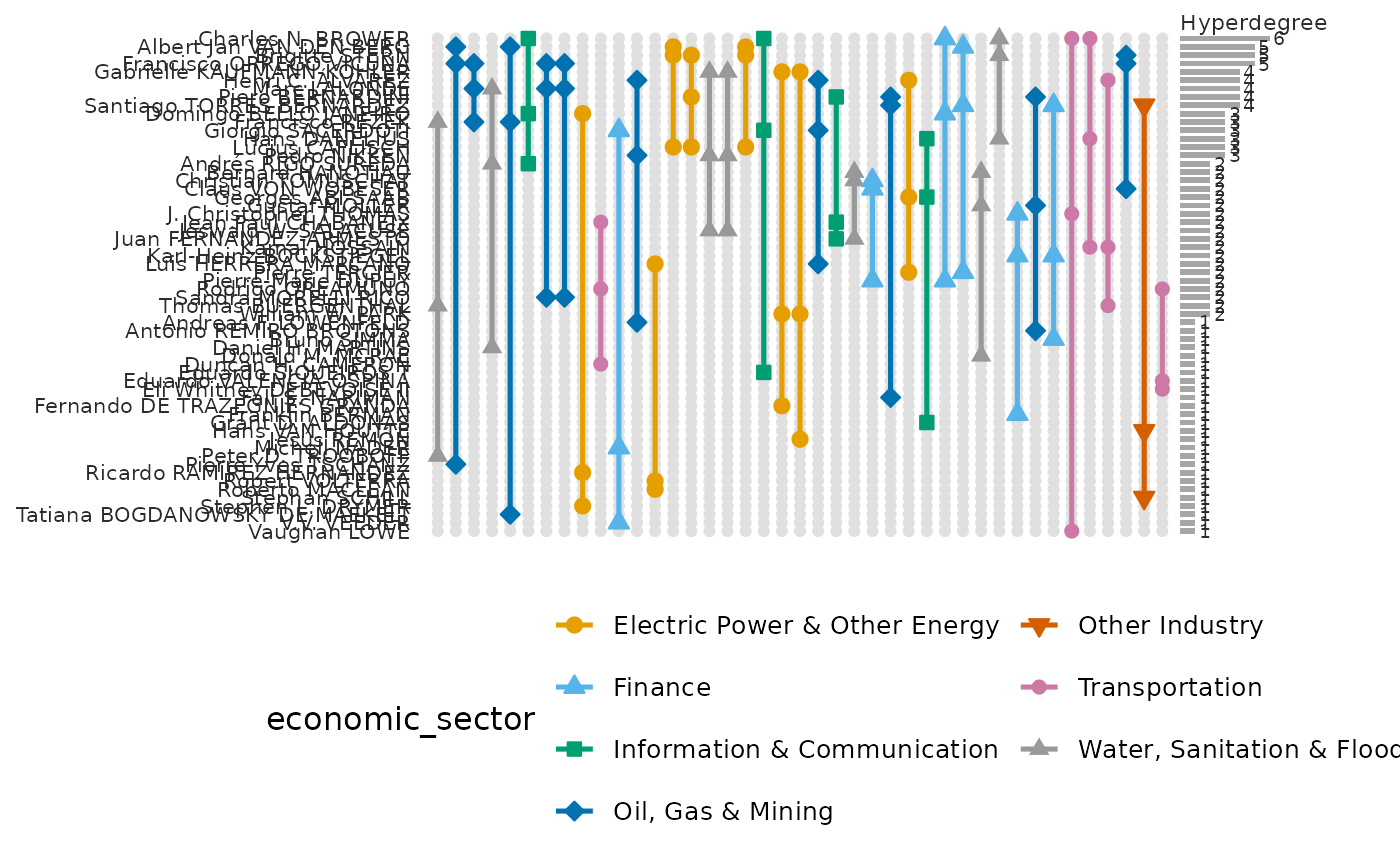

# tribunals in claims against Argentina, one column per tribunal by date
tribunals <- group_hypergraph(icsid_tribunals, node = "arbitrator",
                              hyperedge = "case")
argentina <- hg_subset(tribunals,
                       where = list(respondent = "Argentine Republic"),
                       component = "largest")
plot(argentina, type = "incidence", color_by = "economic_sector",
     sort_by = "constituted")

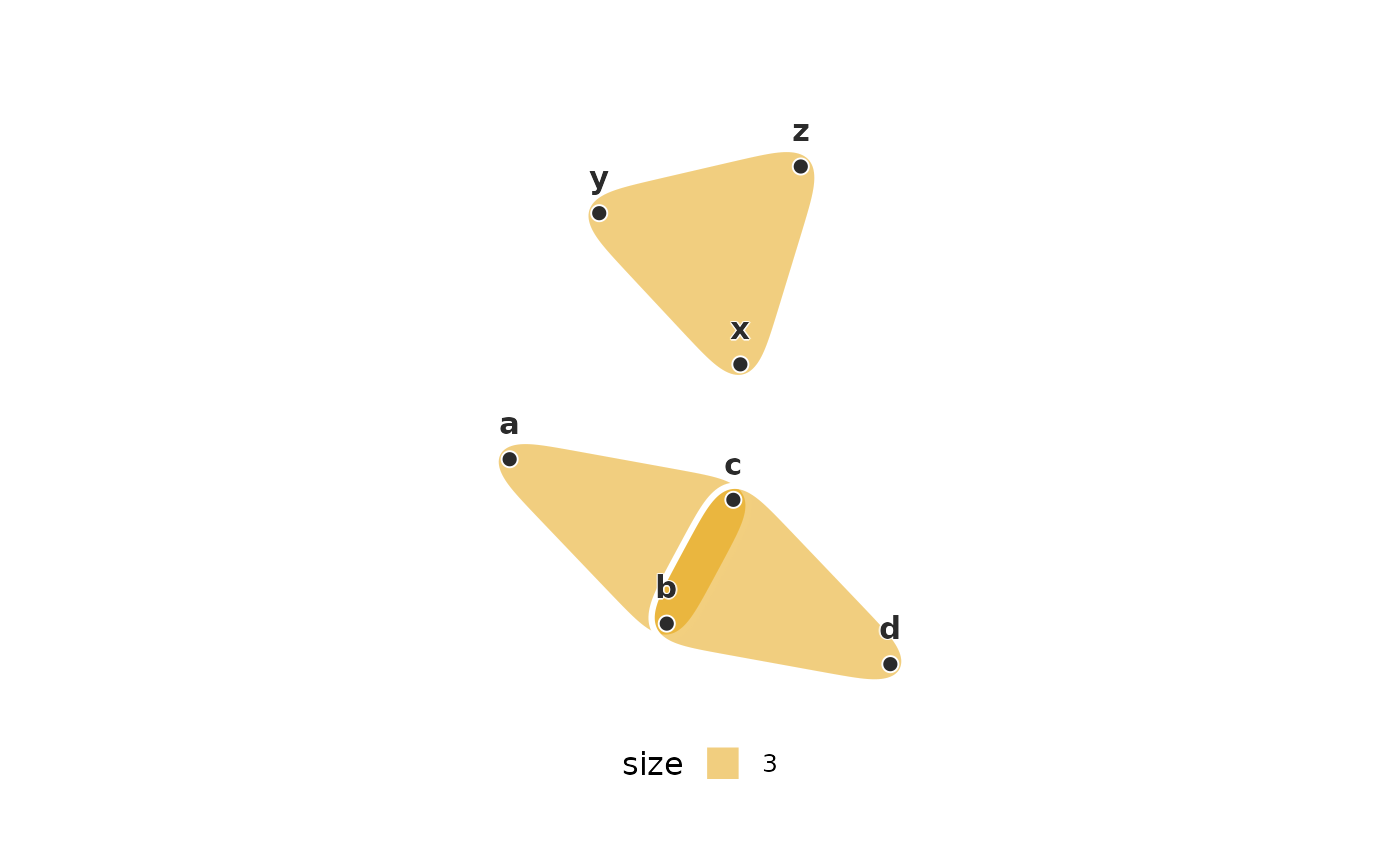

# disconnected pieces are laid out separately and packed
apart <- group_hypergraph(
  data.frame(member = c("a", "b", "c", "b", "c", "d", "x", "y", "z"),
             event = c("e1", "e1", "e1", "e2", "e2", "e2", "e3", "e3", "e3")),
  "member", "event"
)
plot(apart, color_by = "size")


# circles sized by how often each node occurs, pointing where it goes next
counts <- c(a = 40, b = 25, c = 12, d = 30, e = 5, f = 2)
moves <- data.frame(from = c("a", "b", "c", "d", "d", "e"),
                    to = c("b", "c", "a", "e", "b", "f"),
                    weight = c(20, 9, 4, 8, 3, 1))

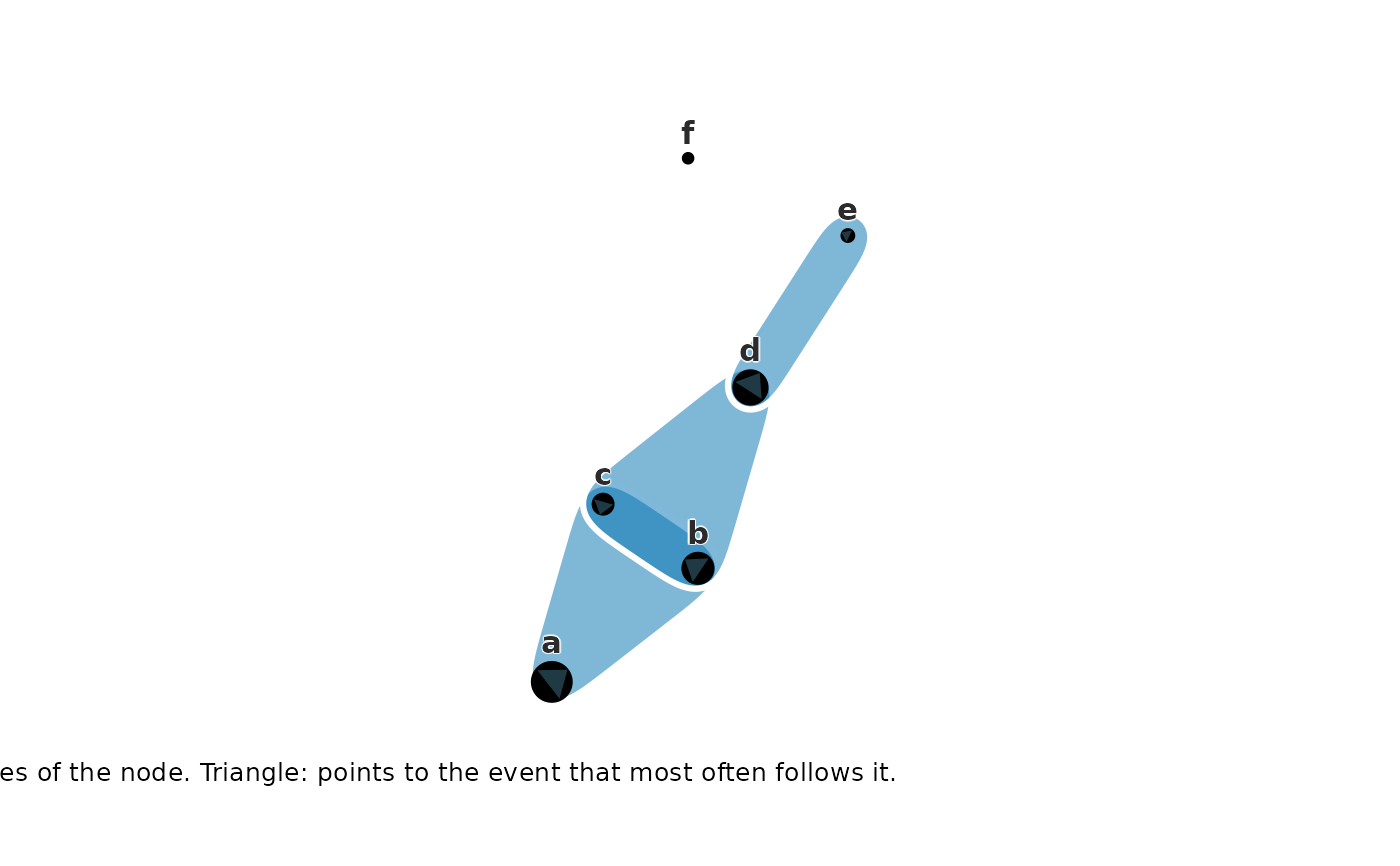

plot(hg, node_sizes = counts, direction = moves,
     size_title = "occurrences of the node")

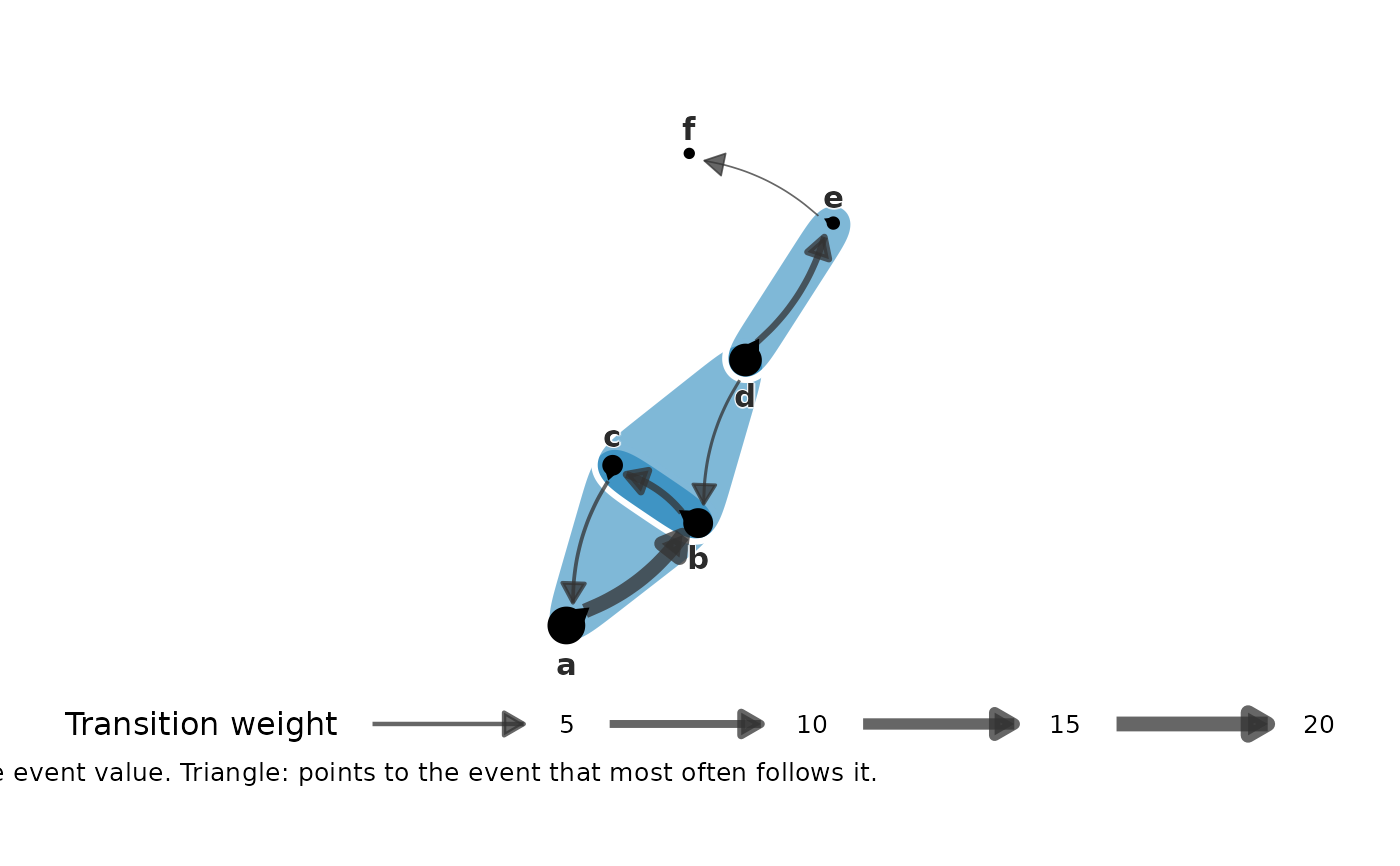

plot(hg, node_sizes = counts, direction = moves, transitions = moves,
     arrow_style = "outside")

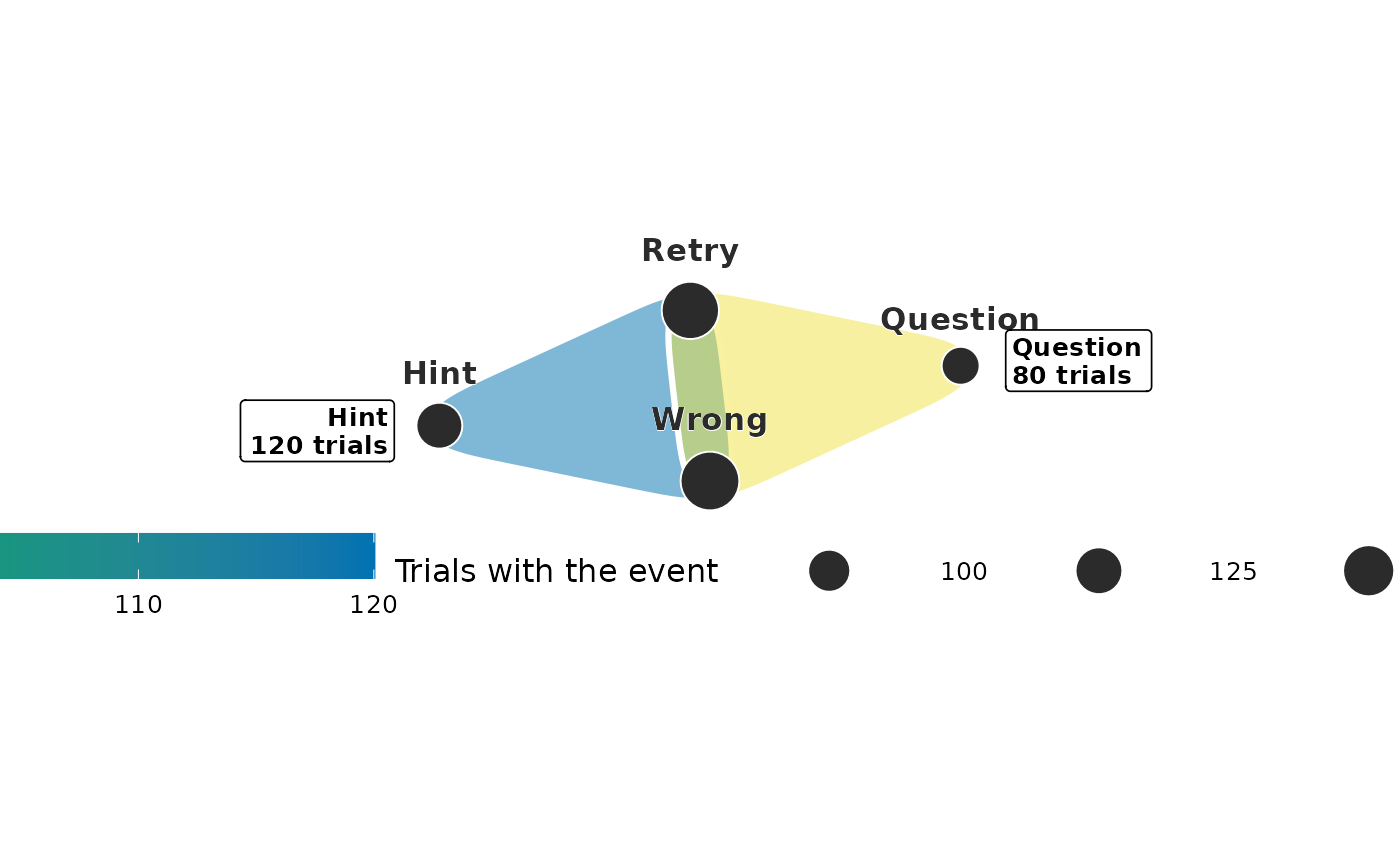

# groups of events with their trial counts: the count colours the pebbles
# and writes a title box per group; points sized by how many trials
# contain each event
members <- data.frame(
  group = c("Hint", "Hint", "Hint", "Question", "Question", "Question"),
  state = c("Wrong", "Hint", "Retry", "Wrong", "Question", "Retry"),
  trials = c(120, 120, 120, 80, 80, 80)
)
trial_groups <- group_hypergraph(members, node = "state", hyperedge = "group")
event_trials <- data.frame(state = c("Wrong", "Hint", "Question", "Retry"),
                           trials = c(200, 120, 80, 190))
plot(trial_groups, node_sizes = event_trials)
